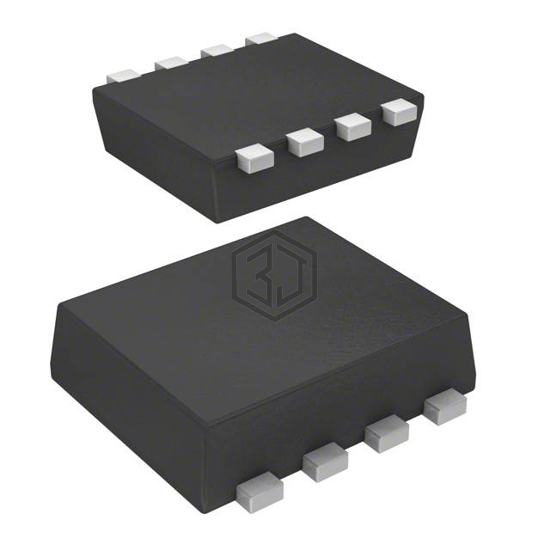

MOSFET P-CH 20V 9.5A SOT28FL
ECH8320-TL-H is a Transistors - FETs, MOSFETs - Single manufactured by Fairchild Semiconductor. MOSFET P-CH 20V 9.5A SOT28FL. Key specifications: mounting type Surface Mount, operating temperature 150°C, package / case 8-SMD, Flat Lead.
In Stock: 12,000
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 9.5A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | - |
| Rds On (Max) @ Id, Vgs | 14.5mOhm @ 5A, 4.5V |
| Vgs(th) (Max) @ Id | 1.3V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 25 nC @ 4.5 V |
| Vgs (Max) | ±10V |
| Input Capacitance (Ciss) (Max) @ Vds | 2300 pF @ 10 V |
| FET Feature | - |
| Power Dissipation (Max) | 1.6W (Ta) |
| Operating Temperature | 150°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-28FL/ECH8 |
| Package / Case | 8-SMD, Flat Lead |
Submit your RFQ for ECH8320-TL-H and get a quote within 24 hours.
