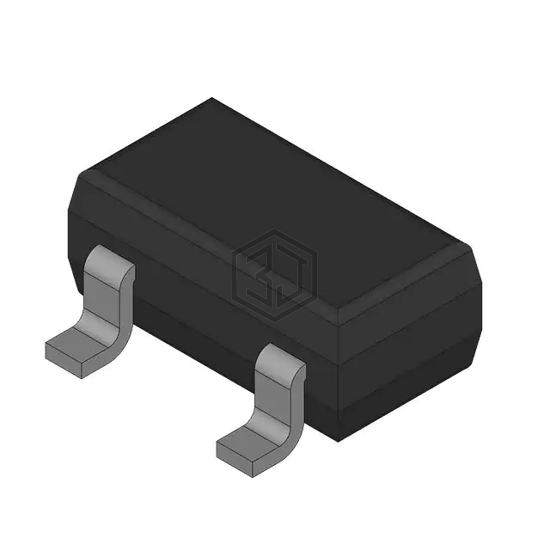

DCB010-TB-E
RECTIFIER DIODE
DCB010-TB-E is a Diodes - Rectifiers - Arrays manufactured by Fairchild Semiconductor. RECTIFIER DIODE. Key specifications: mounting type Surface Mount, package / case TO-236-3, SC-59, SOT-23-3.
In Stock: 2,779
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Diode Configuration | 1 Pair Common Cathode |
| Diode Type | Standard |
| Voltage - DC Reverse (Vr) (Max) | 80 V |
| Current - Average Rectified (Io) (per Diode) | 100mA |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 100 mA |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 4 ns |
| Current - Reverse Leakage @ Vr | 100 nA @ 80 V |
| Operating Temperature - Junction | 125°C (Max) |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | 3-CP |
Frequently Asked Questions
DCB010-TB-E is a Diodes - Rectifiers - Arrays manufactured by Fairchild Semiconductor. RECTIFIER DIODE
The mounting type of DCB010-TB-E is Surface Mount.
The package type of DCB010-TB-E is TO-236-3, SC-59, SOT-23-3.
Yes, DCB010-TB-E is listed as Obsolete. Consider requesting a quote for alternative parts.
