HIGH-SPEED SWITCHING DIODES

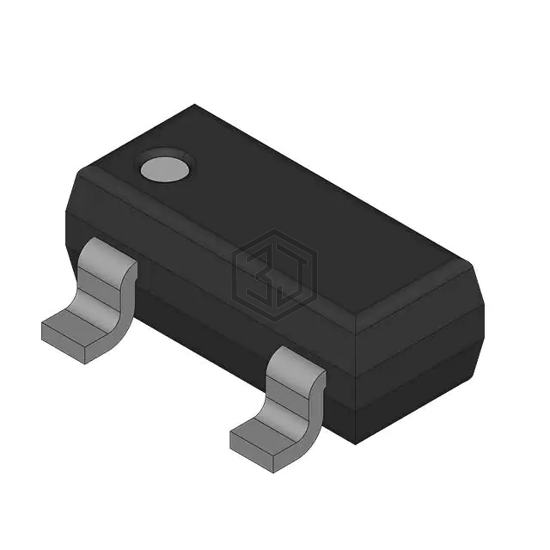

BAW56 is a Diodes - Rectifiers - Arrays manufactured by Fairchild Semiconductor. HIGH-SPEED SWITCHING DIODES. Key specifications: mounting type Surface Mount, package / case TO-236-3, SC-59, SOT-23-3.
In Stock: 104,209
| Attribute | Value |
|---|---|
| Product Status | Active |
| Diode Configuration | 1 Pair Common Anode |
| Diode Type | Standard |
| Voltage - DC Reverse (Vr) (Max) | 85 V |
| Current - Average Rectified (Io) (per Diode) | 200mA |
| Voltage - Forward (Vf) (Max) @ If | 1.25 V @ 150 mA |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 6 ns |
| Current - Reverse Leakage @ Vr | 2.5 µA @ 70 V |
| Operating Temperature - Junction | 150°C |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23-3 |
Submit your RFQ for BAW56 and get a quote within 24 hours.
