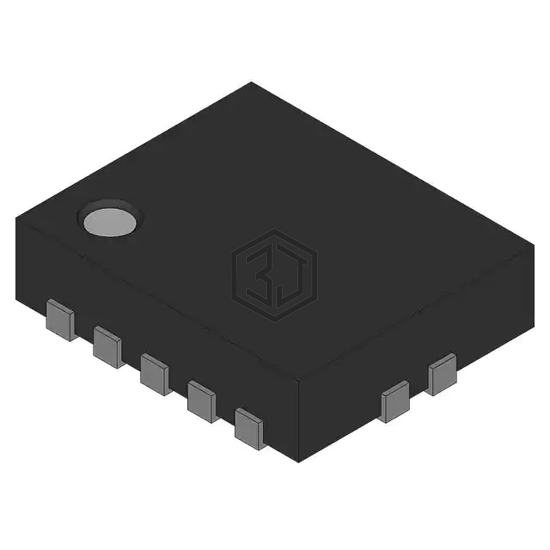

IC GATE NAND 4CH 2-INP 14DQFN
74LCX00BQX is a Logic - Gates and Inverters manufactured by Fairchild Semiconductor. IC GATE NAND 4CH 2-INP 14DQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 2V ~ 3.6V, package / case 14-VFQFN Exposed Pad.
In Stock: 49,694
| Attribute | Value |
|---|---|
| Product Status | Active |
| Logic Type | NAND Gate |
| Number of Circuits | 4 |
| Number of Inputs | 2 |
| Features | - |
| Voltage - Supply | 2V ~ 3.6V |
| Current - Quiescent (Max) | 10 µA |
| Current - Output High, Low | 24mA, 24mA |
| Logic Level - Low | 0.7V ~ 0.8V |
| Logic Level - High | 1.7V ~ 2V |
| Max Propagation Delay @ V, Max CL | 5.2ns @ 3.3V, 50pF |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-DQFN (3x2.5) |
| Package / Case | 14-VFQFN Exposed Pad |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 74LCX00MTCX | onsemi | IC GATE NAND 4CH 2-INP 14TSSOP | 100% | View |
| SN74LVC00AQPWREP | Texas Instruments | IC GATE NAND 4CH 2-INP 14TSSOP | 95% | View |
| 74ALVC00D-Q100J | Nexperia USA Inc. | IC GATE NAND 4CH 2-INP 14SO | 86% | View |
| 74AC00SJX | Fairchild Semiconductor | NAND GATE, AC SERIES, 4 FUNC, 2- | 80% | View |
| SN74AC00PW | Texas Instruments | IC GATE NAND 4CH 2-INP 14TSSOP | 80% | View |
| NC7SV00P5X | onsemi | IC GATE NAND 1CH 2-INP SC70-5 | 63% | View |
Submit your RFQ for 74LCX00BQX and get a quote within 24 hours.
