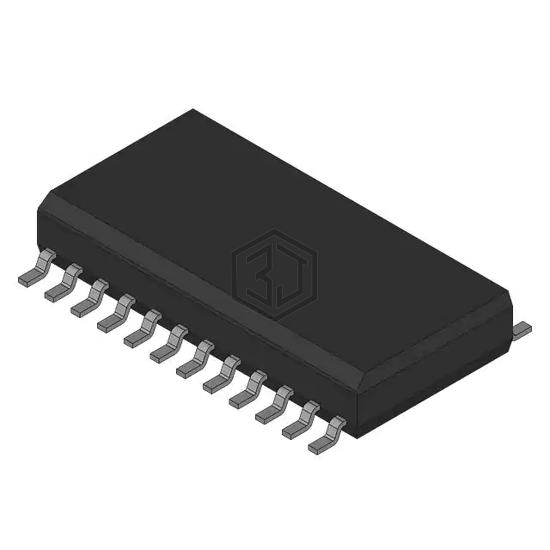

IC FF D-TYPE SNGL 9BIT 24SOP
74F823SC is a Logic - Flip Flops manufactured by Fairchild Semiconductor. IC FF D-TYPE SNGL 9BIT 24SOP. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C (TA), voltage - supply 4.5V ~ 5.5V, package / case 24-SOIC (0.295", 7.50mm Width).
In Stock: 2,255
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Function | Master Reset |
| Type | D-Type |
| Output Type | Tri-State, Non-Inverted |
| Number of Elements | 1 |
| Number of Bits per Element | 9 |
| Clock Frequency | 160 MHz |
| Max Propagation Delay @ V, Max CL | 9.5ns @ 5V, 50pF |
| Trigger Type | Positive Edge |
| Current - Output High, Low | 3mA, 24mA |
| Voltage - Supply | 4.5V ~ 5.5V |
| Current - Quiescent (Iq) | 100 mA |
| Input Capacitance | - |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 24-SOP |
| Package / Case | 24-SOIC (0.295", 7.50mm Width) |
74F823SC is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 74F823SCX | Fairchild Semiconductor | IC FF D-TYPE SNGL 9BIT 24SOP | 100% | View |
| 74F825SC | Fairchild Semiconductor | IC FF D-TYPE SNGL 8BIT 24SOP | 99% | View |
| 74F825SCX | Fairchild Semiconductor | IC FF D-TYPE SNGL 8BIT 24SOP | 99% | View |
| 74ACT823MTCX | onsemi | IC FF D-TYPE SNGL 9BIT 24TSSOP | 76% | View |
| 74ACT825SC | Fairchild Semiconductor | IC FF D-TYPE SNGL 8BIT 24SOP | 75% | View |
| 74ACT825SCX_SF87271A | onsemi | IC FF D-TYPE SNGL 8BIT 24SOP | 75% | View |
Submit your RFQ for 74F823SC and get a quote within 24 hours.
