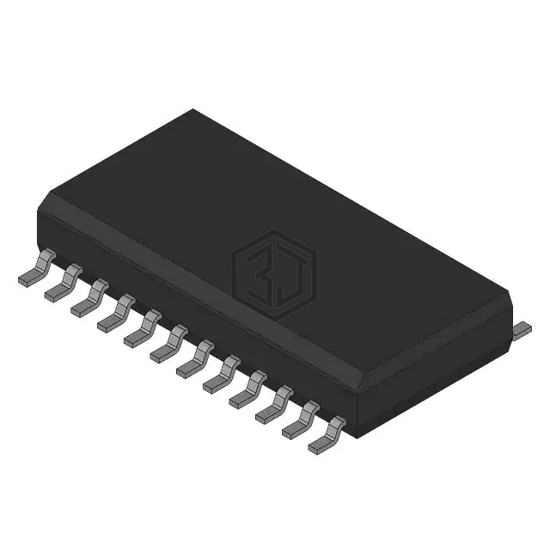

IC FF D-TYPE SNGL 10BIT 24SOP
74ACT821SCX is a Logic - Flip Flops manufactured by Fairchild Semiconductor. IC FF D-TYPE SNGL 10BIT 24SOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply 4.5V ~ 5.5V, package / case 24-SOIC (0.295", 7.50mm Width).
In Stock: 48,330
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Function | Standard |
| Type | D-Type |
| Output Type | Tri-State, Non-Inverted |
| Number of Elements | 1 |
| Number of Bits per Element | 10 |
| Clock Frequency | 150 MHz |
| Max Propagation Delay @ V, Max CL | 9.5ns @ 5V, 50pF |
| Trigger Type | Positive Edge |
| Current - Output High, Low | 24mA, 24mA |
| Voltage - Supply | 4.5V ~ 5.5V |
| Current - Quiescent (Iq) | 80 µA |
| Input Capacitance | 4.5 pF |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 24-SOP |
| Package / Case | 24-SOIC (0.295", 7.50mm Width) |
74ACT821SCX is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 74LCX574FT | Toshiba Semiconductor and Storage | IC FF D-TYPE SNGL 8BIT 20TSSOP | 81% | View |
| SN74LVTH574DWR | Texas Instruments | IC FF D-TYPE SNGL 8BIT 20SOIC | 76% | View |
| SN74LVTH374PW | Texas Instruments | IC FF D-TYPE SNGL 8BIT 20TSSOP | 76% | View |
| 74LVCH16374APAG8 | Renesas Electronics America Inc | IC FF D-TYPE DUAL 8BIT 48TSSOP | 74% | View |
| SN74ALVCH162721GR | Texas Instruments | IC FF D-TYPE SNGL 20BIT 56TSSOP | 70% | View |
| 74ALVT162821DGGY | Nexperia USA Inc. | IC FF D-TYPE DUAL 10BIT 56TSSOP | 66% | View |
Submit your RFQ for 74ACT821SCX and get a quote within 24 hours.
