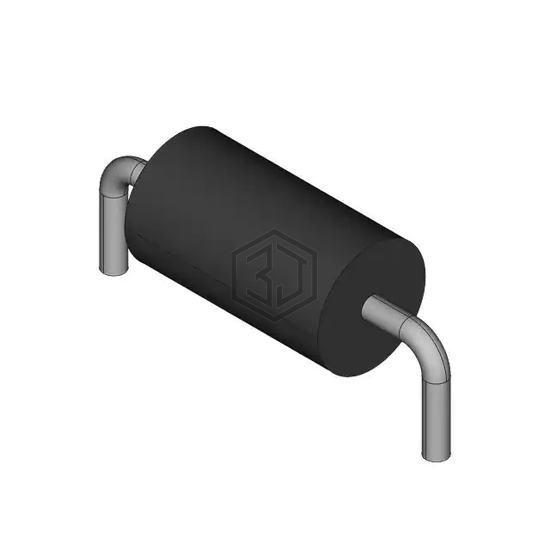

1N5403
RECTIFIER DIODE
1N5403 is a Diodes - Rectifiers - Single manufactured by Fairchild Semiconductor. RECTIFIER DIODE. Key specifications: mounting type Through Hole, package / case DO-201AD, Axial.
In Stock: 6,617
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Diode Type | Standard |
| Voltage - DC Reverse (Vr) (Max) | 300 V |
| Current - Average Rectified (Io) | 3A |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 3 A |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - |
| Current - Reverse Leakage @ Vr | 5 µA @ 300 V |
| Capacitance @ Vr, F | 30pF @ 4V, 1MHz |
| Mounting Type | Through Hole |
| Package / Case | DO-201AD, Axial |
| Supplier Device Package | DO-201AD |
| Operating Temperature - Junction | -55°C ~ 150°C |
Frequently Asked Questions
1N5403 is a Diodes - Rectifiers - Single manufactured by Fairchild Semiconductor. RECTIFIER DIODE
The mounting type of 1N5403 is Through Hole.
The package type of 1N5403 is DO-201AD, Axial.
Yes, 1N5403 is listed as Obsolete. Consider requesting a quote for alternative parts.
