3J LIMITED
9595283402

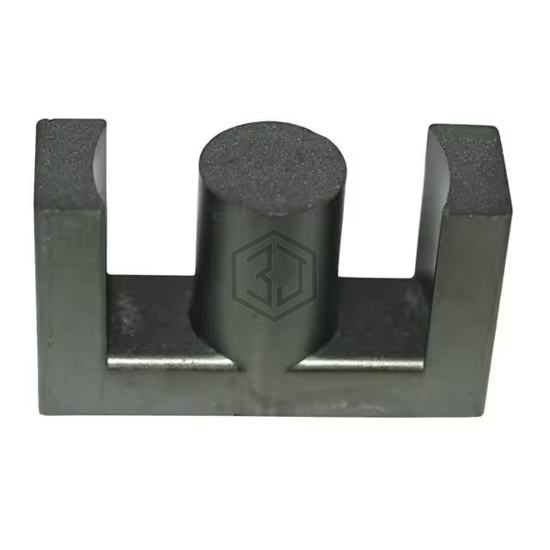

95 EER CORE SET
9595283402 is a Ferrite Cores manufactured by Fair-Rite Products Corp.. 95 EER CORE SET. Key specifications: material 95, tolerance ±25%.
In Stock: 1,713
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Type | EER |
| Supplier Device Package | - |
| Material | 95 |
| Diameter | - |
| Inductance Factor (Al) | - |
| Tolerance | ±25% |
| Gap | Ungapped |
| Effective Permeability (µe) | - |
| Initial Permeability (µi) | 3000 |
| Core Factor (ΣI/A) mm<sup>-1</sup> | 87 |
| Effective Length (le) mm | 74.4 |
| Effective Area (Ae) mm² | 85.2 |
| Minimum Core Cross Section (Amin) mm² | 77 |
| Effective Magnetic Volume (Ve) mm³ | 6337 |
| Finish | Uncoated |
| Height | - |
| Length | 1.122" (28.50mm) |
| Width | - |
Frequently Asked Questions
9595283402 is a Ferrite Cores manufactured by Fair-Rite Products Corp.. 95 EER CORE SET
The material of 9595283402 is 95.
The tolerance of 9595283402 is ±25%.
