9578261802

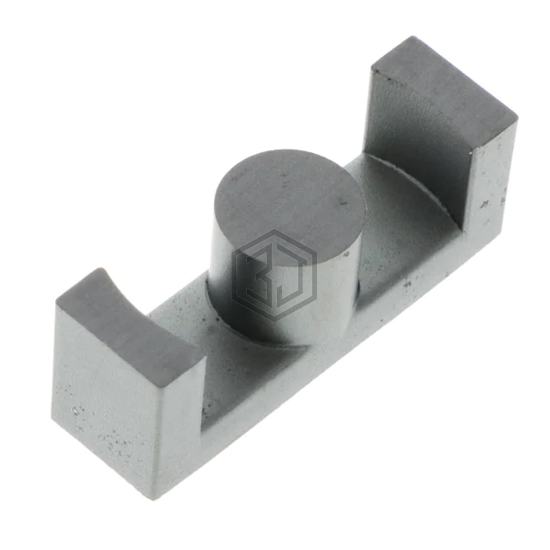

78 EER CORE SET
9578261802 is a Ferrite Cores manufactured by Fair-Rite Products Corp.. 78 EER CORE SET. Key specifications: material 78, tolerance ±25%.
In Stock: 1,230
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Type | EER |
| Supplier Device Package | - |
| Material | 78 |
| Diameter | - |
| Inductance Factor (Al) | - |
| Tolerance | ±25% |
| Gap | Ungapped |
| Effective Permeability (µe) | - |
| Initial Permeability (µi) | 2300 |
| Core Factor (ΣI/A) mm<sup>-1</sup> | 111 |
| Effective Length (le) mm | 48 |
| Effective Area (Ae) mm² | 43.4 |
| Minimum Core Cross Section (Amin) mm² | 42.5 |
| Effective Magnetic Volume (Ve) mm³ | 2083 |
| Finish | Uncoated |
| Height | 0.366" (9.30mm) |
| Length | - |
| Width | 0.295" (7.50mm) |
Frequently Asked Questions
9578261802 is a Ferrite Cores manufactured by Fair-Rite Products Corp.. 78 EER CORE SET
The material of 9578261802 is 78.
The tolerance of 9578261802 is ±25%.
