9498207002

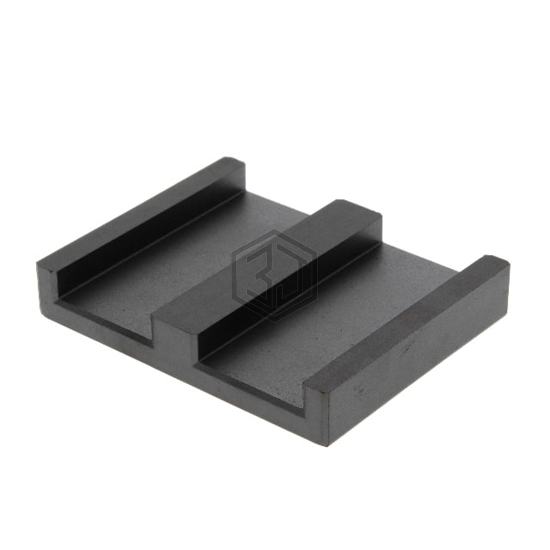

98 PLANAR E CORE SET
9498207002 is a Ferrite Cores manufactured by Fair-Rite Products Corp.. 98 PLANAR E CORE SET. Key specifications: tolerance ±25%.
In Stock: 40
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Type | E |
| Supplier Device Package | - |
| Material | - |
| Diameter | - |
| Inductance Factor (Al) | - |
| Tolerance | ±25% |
| Gap | Ungapped |
| Effective Permeability (µe) | - |
| Initial Permeability (µi) | 2400 |
| Core Factor (ΣI/A) mm<sup>-1</sup> | 15.4 |
| Effective Length (le) mm | 80.7 |
| Effective Area (Ae) mm² | 520 |
| Minimum Core Cross Section (Amin) mm² | 515 |
| Effective Magnetic Volume (Ve) mm³ | 41500 |
| Finish | Uncoated |
| Height | 0.407" (10.34mm) |
| Length | 2.520" (64.00mm) |
| Width | 2.008" (51.00mm) |
Frequently Asked Questions
9498207002 is a Ferrite Cores manufactured by Fair-Rite Products Corp.. 98 PLANAR E CORE SET
The tolerance of 9498207002 is ±25%.
