9478202002

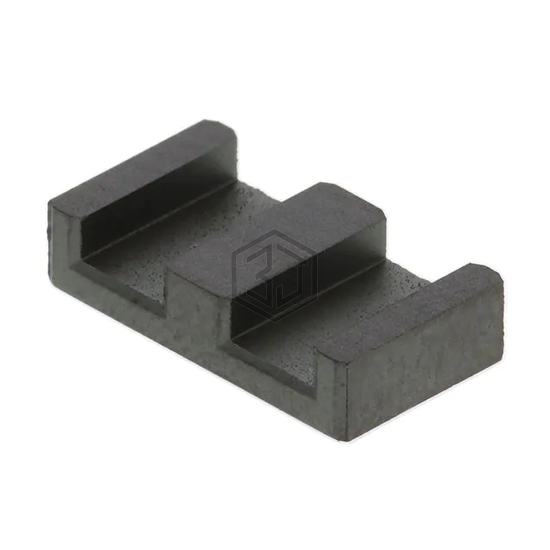

78 PLANAR E CORE SET
9478202002 is a Ferrite Cores manufactured by Fair-Rite Products Corp.. 78 PLANAR E CORE SET. Key specifications: material 78, tolerance ±25%.
In Stock: 1,634
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Type | E |
| Supplier Device Package | - |
| Material | 78 |
| Diameter | - |
| Inductance Factor (Al) | - |
| Tolerance | ±25% |
| Gap | Ungapped |
| Effective Permeability (µe) | - |
| Initial Permeability (µi) | 2300 |
| Core Factor (ΣI/A) mm<sup>-1</sup> | 60 |
| Effective Length (le) mm | 24.3 |
| Effective Area (Ae) mm² | 39.5 |
| Minimum Core Cross Section (Amin) mm² | 39 |
| Effective Magnetic Volume (Ve) mm³ | 960 |
| Finish | Uncoated |
| Height | - |
| Length | - |
| Width | 0.394" (10.00mm) |
Frequently Asked Questions
9478202002 is a Ferrite Cores manufactured by Fair-Rite Products Corp.. 78 PLANAR E CORE SET
The material of 9478202002 is 78.
The tolerance of 9478202002 is ±25%.
