9277012002
77 U CORE

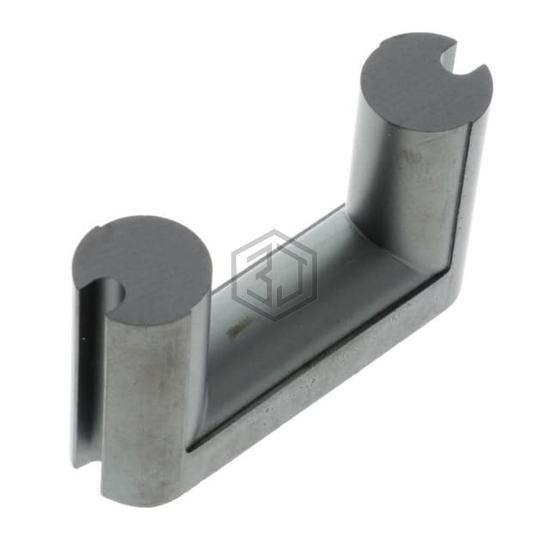

9277012002 is a Ferrite Cores manufactured by Fair-Rite Products Corp.. 77 U CORE. Key specifications: material 77.
In Stock: 356
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Type | U |
| Supplier Device Package | - |
| Material | 77 |
| Diameter | - |
| Inductance Factor (Al) | - |
| Tolerance | - |
| Gap | Ungapped |
| Effective Permeability (µe) | - |
| Initial Permeability (µi) | 2000 |
| Core Factor (ΣI/A) mm<sup>-1</sup> | 138 |
| Effective Length (le) mm | 135 |
| Effective Area (Ae) mm² | 98 |
| Minimum Core Cross Section (Amin) mm² | - |
| Effective Magnetic Volume (Ve) mm³ | 13200 |
| Finish | Uncoated |
| Height | 1.000" (25.40mm) |
| Length | 1.620" (41.15mm) |
| Width | 0.460" (11.68mm) |
Frequently Asked Questions
9277012002 is a Ferrite Cores manufactured by Fair-Rite Products Corp.. 77 U CORE
The material of 9277012002 is 77.
