6698505021

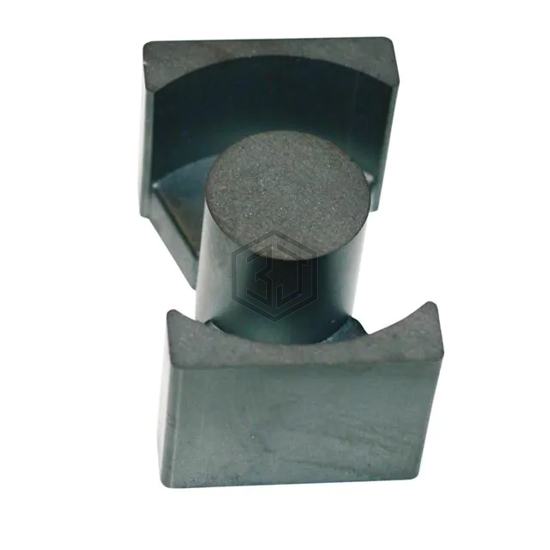

98 PQ CORE SET
6698505021 is a Ferrite Cores manufactured by Fair-Rite Products Corp.. 98 PQ CORE SET. Key specifications: tolerance ±25%.
In Stock: 7,285
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Type | PQ |
| Supplier Device Package | - |
| Material | - |
| Diameter | - |
| Inductance Factor (Al) | - |
| Tolerance | ±25% |
| Gap | Ungapped |
| Effective Permeability (µe) | - |
| Initial Permeability (µi) | 2400 |
| Core Factor (ΣI/A) mm<sup>-1</sup> | 35.9 |
| Effective Length (le) mm | 114.7 |
| Effective Area (Ae) mm² | 319 |
| Minimum Core Cross Section (Amin) mm² | 314.2 |
| Effective Magnetic Volume (Ve) mm³ | 36630 |
| Finish | Uncoated |
| Height | - |
| Length | 1.969" (50.00mm) |
| Width | 1.260" (32.00mm) |
Frequently Asked Questions
6698505021 is a Ferrite Cores manufactured by Fair-Rite Products Corp.. 98 PQ CORE SET
The tolerance of 6698505021 is ±25%.
