3J LIMITED
6698404121
98 PQ CORE SET

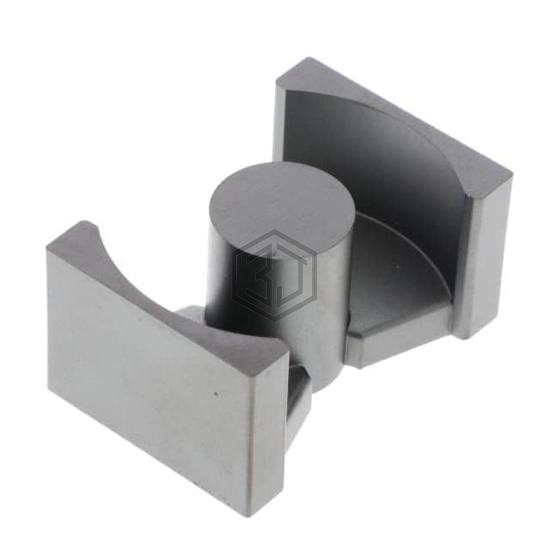

6698404121 is a Ferrite Cores manufactured by Fair-Rite Products Corp.. 98 PQ CORE SET. Key specifications: tolerance ±25%.
In Stock: 50
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Type | PQ |
| Supplier Device Package | - |
| Material | - |
| Diameter | - |
| Inductance Factor (Al) | - |
| Tolerance | ±25% |
| Gap | Ungapped |
| Effective Permeability (µe) | - |
| Initial Permeability (µi) | 2400 |
| Core Factor (ΣI/A) mm<sup>-1</sup> | 52.3 |
| Effective Length (le) mm | 103.6 |
| Effective Area (Ae) mm² | 198 |
| Minimum Core Cross Section (Amin) mm² | 170 |
| Effective Magnetic Volume (Ve) mm³ | 20500 |
| Finish | Uncoated |
| Height | - |
| Length | - |
| Width | - |
Frequently Asked Questions
6698404121 is a Ferrite Cores manufactured by Fair-Rite Products Corp.. 98 PQ CORE SET
The tolerance of 6698404121 is ±25%.
