6695212021

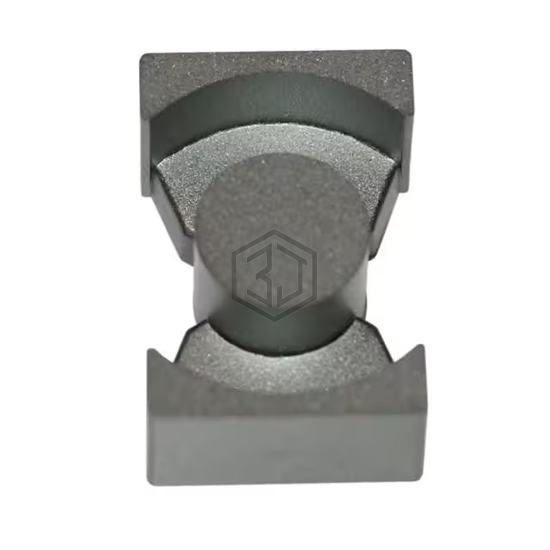

95 PQ CORE SET
6695212021 is a Ferrite Cores manufactured by Fair-Rite Products Corp.. 95 PQ CORE SET. Key specifications: material 95, tolerance ±25%.
In Stock: 359
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Type | PQ |
| Supplier Device Package | - |
| Material | 95 |
| Diameter | - |
| Inductance Factor (Al) | - |
| Tolerance | ±25% |
| Gap | Ungapped |
| Effective Permeability (µe) | - |
| Initial Permeability (µi) | 3000 |
| Core Factor (ΣI/A) mm<sup>-1</sup> | 72 |
| Effective Length (le) mm | 45.2 |
| Effective Area (Ae) mm² | 62.5 |
| Minimum Core Cross Section (Amin) mm² | 60.8 |
| Effective Magnetic Volume (Ve) mm³ | 2526 |
| Finish | Uncoated |
| Height | - |
| Length | 0.807" (20.50mm) |
| Width | 0.551" (14.00mm) |
Frequently Asked Questions
6695212021 is a Ferrite Cores manufactured by Fair-Rite Products Corp.. 95 PQ CORE SET
The material of 6695212021 is 95.
The tolerance of 6695212021 is ±25%.
