3J LIMITED
6295180121

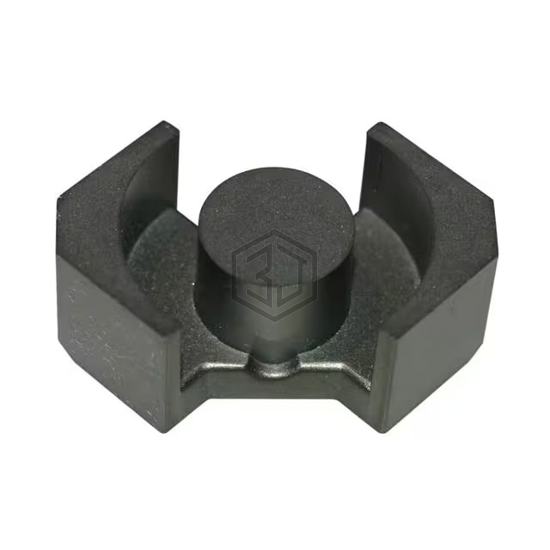

95 RM CORE SET
6295180121 is a Ferrite Cores manufactured by Fair-Rite Products Corp.. 95 RM CORE SET. Key specifications: material 95, tolerance ±25%.
In Stock: 6,511
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Type | RM |
| Supplier Device Package | - |
| Material | 95 |
| Diameter | - |
| Inductance Factor (Al) | - |
| Tolerance | ±25% |
| Gap | Ungapped |
| Effective Permeability (µe) | - |
| Initial Permeability (µi) | 3000 |
| Core Factor (ΣI/A) mm<sup>-1</sup> | 93 |
| Effective Length (le) mm | 31 |
| Effective Area (Ae) mm² | 34.2 |
| Minimum Core Cross Section (Amin) mm² | 31.2 |
| Effective Magnetic Volume (Ve) mm³ | 1060 |
| Finish | Uncoated |
| Height | 0.244" (6.20mm) |
| Length | - |
| Width | 0.311" (7.90mm) |
Frequently Asked Questions
6295180121 is a Ferrite Cores manufactured by Fair-Rite Products Corp.. 95 RM CORE SET
The material of 6295180121 is 95.
The tolerance of 6295180121 is ±25%.
