5980001801

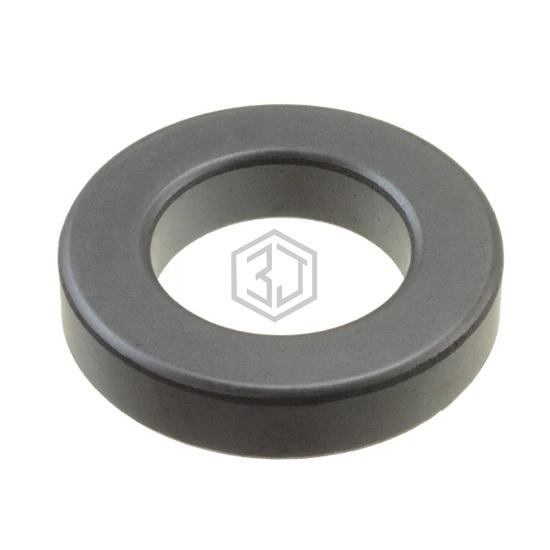

80 TOROID
5980001801 is a Ferrite Cores manufactured by Fair-Rite Products Corp.. 80 TOROID. Key specifications: tolerance ±25%.
In Stock: 399
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Type | Toroid |
| Supplier Device Package | - |
| Material | - |
| Diameter | 0.870" (22.10mm) |
| Inductance Factor (Al) | 355 nH |
| Tolerance | ±25% |
| Gap | Ungapped |
| Effective Permeability (µe) | - |
| Initial Permeability (µi) | 550 |
| Core Factor (ΣI/A) mm<sup>-1</sup> | 207 |
| Effective Length (le) mm | 54.2 |
| Effective Area (Ae) mm² | 26.1 |
| Minimum Core Cross Section (Amin) mm² | - |
| Effective Magnetic Volume (Ve) mm³ | 1420 |
| Finish | Uncoated |
| Height | 0.250" (6.35mm) |
| Length | - |
| Width | - |
Frequently Asked Questions
5980001801 is a Ferrite Cores manufactured by Fair-Rite Products Corp.. 80 TOROID
The tolerance of 5980001801 is ±25%.
