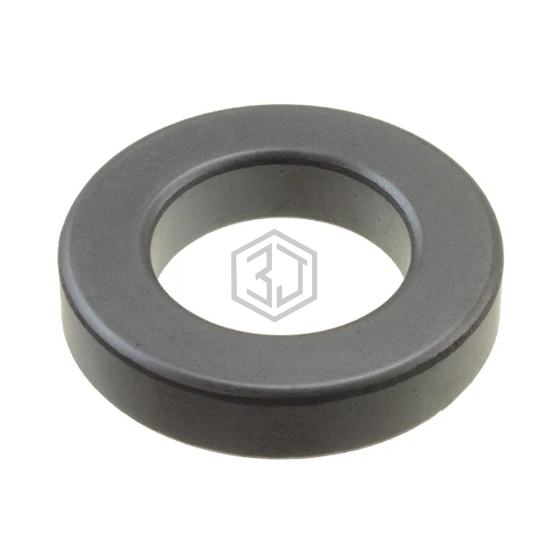

5980000201
80 TOROID
5980000201 is a Ferrite Cores manufactured by Fair-Rite Products Corp.. 80 TOROID. Key specifications: tolerance ±25%.
In Stock: 10,292
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Type | Toroid |
| Supplier Device Package | - |
| Material | - |
| Diameter | 0.374" (9.50mm) |
| Inductance Factor (Al) | 245 nH |
| Tolerance | ±25% |
| Gap | Ungapped |
| Effective Permeability (µe) | - |
| Initial Permeability (µi) | 550 |
| Core Factor (ΣI/A) mm<sup>-1</sup> | 286 |
| Effective Length (le) mm | 20.7 |
| Effective Area (Ae) mm² | 7.3 |
| Minimum Core Cross Section (Amin) mm² | - |
| Effective Magnetic Volume (Ve) mm³ | 150 |
| Finish | Uncoated |
| Height | 0.125" (3.18mm) |
| Length | - |
| Width | - |
Frequently Asked Questions
5980000201 is a Ferrite Cores manufactured by Fair-Rite Products Corp.. 80 TOROID
The tolerance of 5980000201 is ±25%.
