5977003821

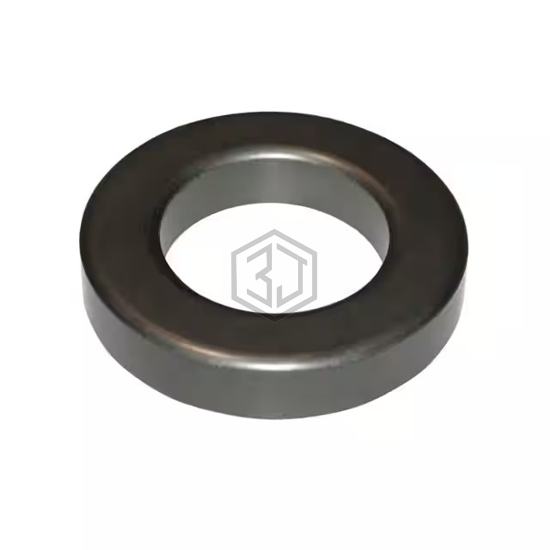

77 TOROID PLASTIC COATED
5977003821 is a Ferrite Cores manufactured by Fair-Rite Products Corp.. 77 TOROID PLASTIC COATED. Key specifications: material 77, tolerance -30%, +25%.
In Stock: 92
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Type | Toroid |
| Supplier Device Package | - |
| Material | 77 |
| Diameter | 2.472" (62.80mm) |
| Inductance Factor (Al) | 2.95 µH |
| Tolerance | -30%, +25% |
| Gap | Ungapped |
| Effective Permeability (µe) | - |
| Initial Permeability (µi) | 2000 |
| Core Factor (ΣI/A) mm<sup>-1</sup> | 0.9136 |
| Effective Length (le) mm | 144 |
| Effective Area (Ae) mm² | 157 |
| Minimum Core Cross Section (Amin) mm² | - |
| Effective Magnetic Volume (Ve) mm³ | 22797 |
| Finish | Plastic |
| Height | 0.539" (13.70mm) |
| Length | - |
| Width | - |
Frequently Asked Questions
5977003821 is a Ferrite Cores manufactured by Fair-Rite Products Corp.. 77 TOROID PLASTIC COATED
The material of 5977003821 is 77.
The tolerance of 5977003821 is -30%, +25%.
