5977001021

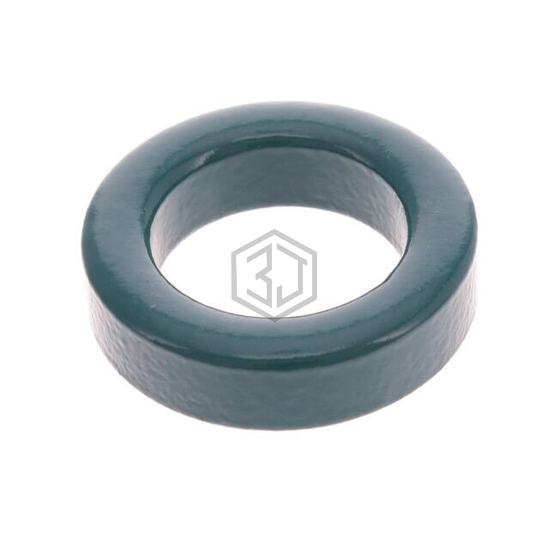

77 TOROID PLASTIC COATED
5977001021 is a Ferrite Cores manufactured by Fair-Rite Products Corp.. 77 TOROID PLASTIC COATED. Key specifications: material 77, tolerance -30%, +25%.
In Stock: 349
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Type | Toroid |
| Supplier Device Package | - |
| Material | 77 |
| Diameter | 1.187" (30.15mm) |
| Inductance Factor (Al) | 1.365 µH |
| Tolerance | -30%, +25% |
| Gap | Ungapped |
| Effective Permeability (µe) | - |
| Initial Permeability (µi) | 2000 |
| Core Factor (ΣI/A) mm<sup>-1</sup> | 1.9811 |
| Effective Length (le) mm | 73.2 |
| Effective Area (Ae) mm² | 36.9 |
| Minimum Core Cross Section (Amin) mm² | - |
| Effective Magnetic Volume (Ve) mm³ | 2704 |
| Finish | Plastic |
| Height | 0.325" (8.26mm) |
| Length | - |
| Width | - |
Frequently Asked Questions
5977001021 is a Ferrite Cores manufactured by Fair-Rite Products Corp.. 77 TOROID PLASTIC COATED
The material of 5977001021 is 77.
The tolerance of 5977001021 is -30%, +25%.
