5977000221

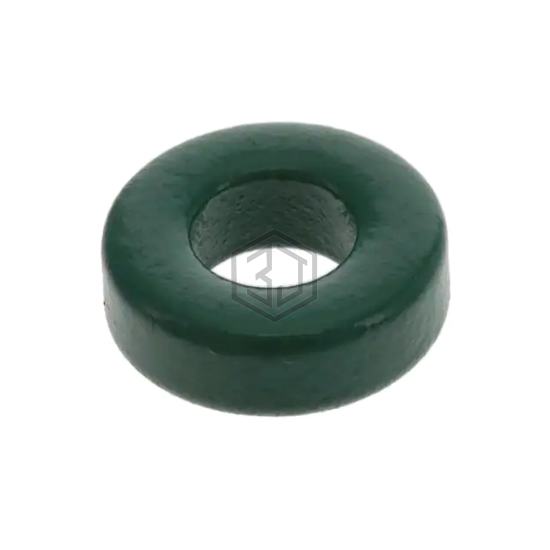

77 TOROID PLASTIC COATED
5977000221 is a Ferrite Cores manufactured by Fair-Rite Products Corp.. 77 TOROID PLASTIC COATED. Key specifications: material 77, tolerance -30%, +25%.
In Stock: 787
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Type | Toroid |
| Supplier Device Package | - |
| Material | 77 |
| Diameter | 0.402" (10.20mm) |
| Inductance Factor (Al) | 945 nH |
| Tolerance | -30%, +25% |
| Gap | Ungapped |
| Effective Permeability (µe) | - |
| Initial Permeability (µi) | 2000 |
| Core Factor (ΣI/A) mm<sup>-1</sup> | 2.86 |
| Effective Length (le) mm | 20.7 |
| Effective Area (Ae) mm² | 7.2 |
| Minimum Core Cross Section (Amin) mm² | - |
| Effective Magnetic Volume (Ve) mm³ | 150 |
| Finish | Plastic |
| Height | 0.150" (3.81mm) |
| Length | - |
| Width | - |
Frequently Asked Questions
5977000221 is a Ferrite Cores manufactured by Fair-Rite Products Corp.. 77 TOROID PLASTIC COATED
The material of 5977000221 is 77.
The tolerance of 5977000221 is -30%, +25%.
