5976022121

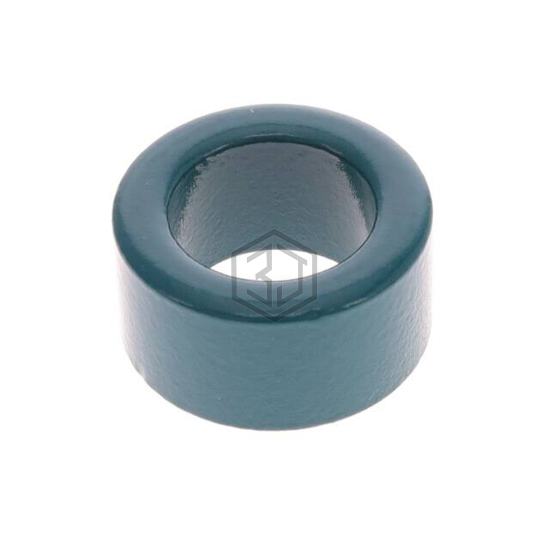

76 COATED TOROID
5976022121 is a Ferrite Cores manufactured by Fair-Rite Products Corp.. 76 COATED TOROID. Key specifications: material 76, tolerance ±30%.
In Stock: 277
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Type | Toroid |
| Supplier Device Package | - |
| Material | 76 |
| Diameter | 1.185" (30.10mm) |
| Inductance Factor (Al) | 12.8 µH |
| Tolerance | ±30% |
| Gap | Ungapped |
| Effective Permeability (µe) | - |
| Initial Permeability (µi) | 10000 |
| Core Factor (ΣI/A) mm<sup>-1</sup> | 0.978 |
| Effective Length (le) mm | 73.2 |
| Effective Area (Ae) mm² | 74.9 |
| Minimum Core Cross Section (Amin) mm² | - |
| Effective Magnetic Volume (Ve) mm³ | 5480 |
| Finish | Plastic |
| Height | 0.630" (16.00mm) |
| Length | - |
| Width | - |
Frequently Asked Questions
5976022121 is a Ferrite Cores manufactured by Fair-Rite Products Corp.. 76 COATED TOROID
The material of 5976022121 is 76.
The tolerance of 5976022121 is ±30%.
