5975011101

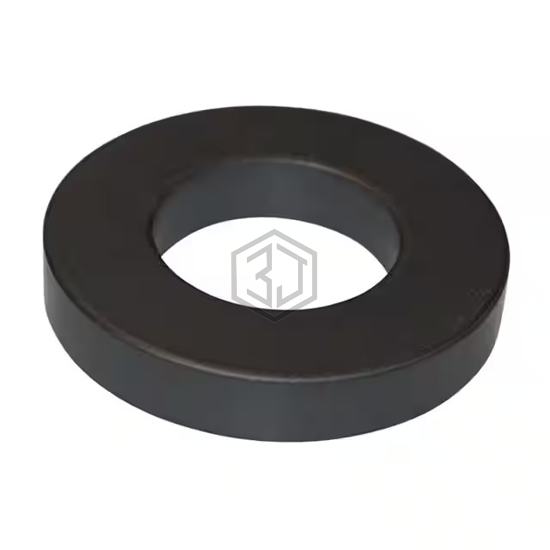

75 TOROID
5975011101 is a Ferrite Cores manufactured by Fair-Rite Products Corp.. 75 TOROID. Key specifications: material 75, tolerance ±25%.
In Stock: 16
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Type | Toroid |
| Supplier Device Package | - |
| Material | 75 |
| Diameter | 2.900" (73.66mm) |
| Inductance Factor (Al) | - |
| Tolerance | ±25% |
| Gap | Ungapped |
| Effective Permeability (µe) | - |
| Initial Permeability (µi) | 5000 |
| Core Factor (ΣI/A) mm<sup>-1</sup> | - |
| Effective Length (le) mm | 167 |
| Effective Area (Ae) mm² | 215 |
| Minimum Core Cross Section (Amin) mm² | - |
| Effective Magnetic Volume (Ve) mm³ | 35900 |
| Finish | Uncoated |
| Height | 0.500" (12.70mm) |
| Length | - |
| Width | - |
Frequently Asked Questions
5975011101 is a Ferrite Cores manufactured by Fair-Rite Products Corp.. 75 TOROID
The material of 5975011101 is 75.
The tolerance of 5975011101 is ±25%.
