5975004921

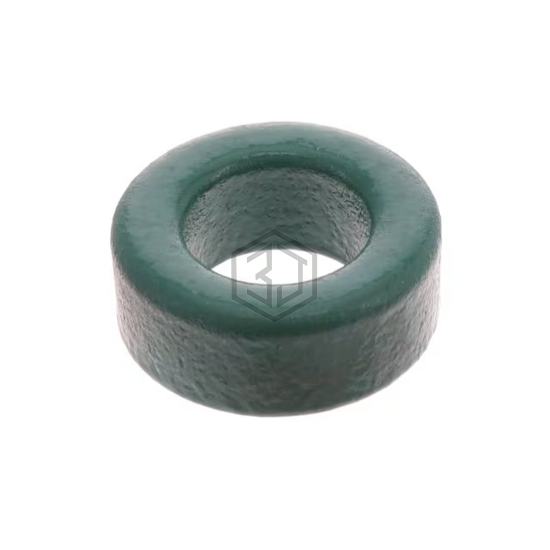

75 TOROID PLASTIC COATED
5975004921 is a Ferrite Cores manufactured by Fair-Rite Products Corp.. 75 TOROID PLASTIC COATED. Key specifications: material 75, tolerance -25%, +20%.
In Stock: 1,786
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Type | Toroid |
| Supplier Device Package | - |
| Material | 75 |
| Diameter | 0.665" (16.90mm) |
| Inductance Factor (Al) | 3.225 µH |
| Tolerance | -25%, +20% |
| Gap | Ungapped |
| Effective Permeability (µe) | - |
| Initial Permeability (µi) | 5000 |
| Core Factor (ΣI/A) mm<sup>-1</sup> | 1.937 |
| Effective Length (le) mm | 38.5 |
| Effective Area (Ae) mm² | 19.9 |
| Minimum Core Cross Section (Amin) mm² | - |
| Effective Magnetic Volume (Ve) mm³ | 766 |
| Finish | Plastic |
| Height | 0.280" (7.11mm) |
| Length | - |
| Width | - |
Frequently Asked Questions
5975004921 is a Ferrite Cores manufactured by Fair-Rite Products Corp.. 75 TOROID PLASTIC COATED
The material of 5975004921 is 75.
The tolerance of 5975004921 is -25%, +20%.
