5961000621

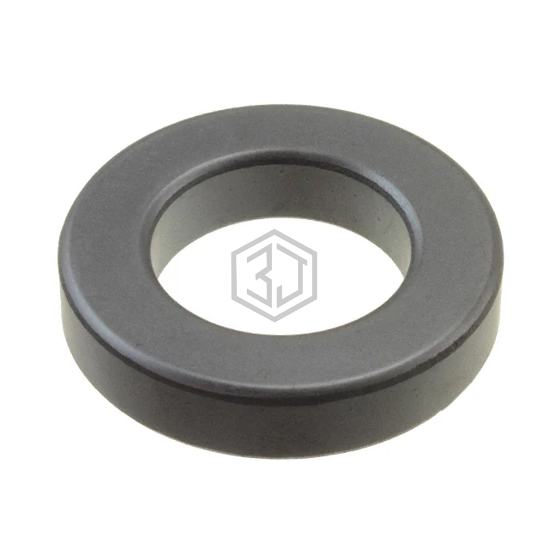

61 TOROID PLASTIC COATED
5961000621 is a Ferrite Cores manufactured by Fair-Rite Products Corp.. 61 TOROID PLASTIC COATED. Key specifications: material 61, tolerance ±25%.
In Stock: 9,380
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Type | Toroid |
| Supplier Device Package | - |
| Material | 61 |
| Diameter | 0.860" (21.84mm) |
| Inductance Factor (Al) | 75 nH |
| Tolerance | ±25% |
| Gap | Ungapped |
| Effective Permeability (µe) | - |
| Initial Permeability (µi) | 125 |
| Core Factor (ΣI/A) mm<sup>-1</sup> | 213 |
| Effective Length (le) mm | 52 |
| Effective Area (Ae) mm² | 24.3 |
| Minimum Core Cross Section (Amin) mm² | - |
| Effective Magnetic Volume (Ve) mm³ | 1260 |
| Finish | Plastic |
| Height | 0.280" (7.11mm) |
| Length | - |
| Width | - |
Frequently Asked Questions
5961000621 is a Ferrite Cores manufactured by Fair-Rite Products Corp.. 61 TOROID PLASTIC COATED
The material of 5961000621 is 61.
The tolerance of 5961000621 is ±25%.
