5943001601
43 TOROID

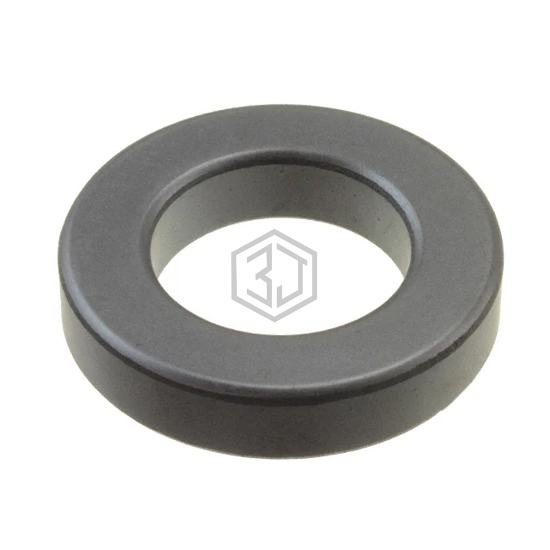

5943001601 is a Ferrite Cores manufactured by Fair-Rite Products Corp.. 43 TOROID. Key specifications: material 43, tolerance ±20%.
In Stock: 680
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Type | Toroid |
| Supplier Device Package | - |
| Material | 43 |
| Diameter | - |
| Inductance Factor (Al) | - |
| Tolerance | ±20% |
| Gap | Ungapped |
| Effective Permeability (µe) | - |
| Initial Permeability (µi) | 800 |
| Core Factor (ΣI/A) mm<sup>-1</sup> | - |
| Effective Length (le) mm | 76 |
| Effective Area (Ae) mm² | 47 |
| Minimum Core Cross Section (Amin) mm² | - |
| Effective Magnetic Volume (Ve) mm³ | 3530 |
| Finish | Uncoated |
| Height | - |
| Length | - |
| Width | 0.311" (7.90mm) |
Frequently Asked Questions
5943001601 is a Ferrite Cores manufactured by Fair-Rite Products Corp.. 43 TOROID
The material of 5943001601 is 43.
The tolerance of 5943001601 is ±20%.
