5943001301

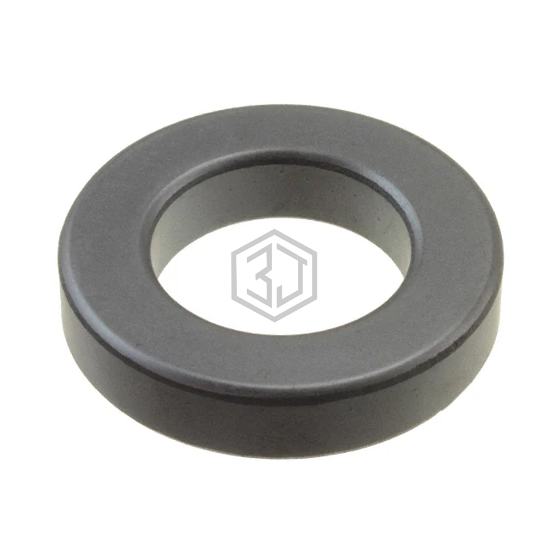

43 TOROID
5943001301 is a Ferrite Cores manufactured by Fair-Rite Products Corp.. 43 TOROID. Key specifications: material 43, tolerance ±20%.
In Stock: 552
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Type | Toroid |
| Supplier Device Package | - |
| Material | 43 |
| Diameter | 1.000" (25.40mm) |
| Inductance Factor (Al) | - |
| Tolerance | ±20% |
| Gap | Ungapped |
| Effective Permeability (µe) | - |
| Initial Permeability (µi) | 800 |
| Core Factor (ΣI/A) mm<sup>-1</sup> | - |
| Effective Length (le) mm | 62 |
| Effective Area (Ae) mm² | 30.8 |
| Minimum Core Cross Section (Amin) mm² | - |
| Effective Magnetic Volume (Ve) mm³ | 1900 |
| Finish | Uncoated |
| Height | 0.250" (6.35mm) |
| Length | - |
| Width | - |
Frequently Asked Questions
5943001301 is a Ferrite Cores manufactured by Fair-Rite Products Corp.. 43 TOROID
The material of 5943001301 is 43.
The tolerance of 5943001301 is ±20%.
