5943000321
43 TOROID COATED

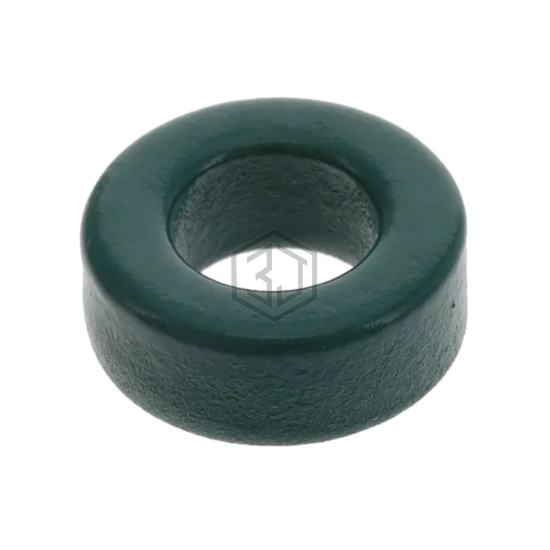

5943000321 is a Ferrite Cores manufactured by Fair-Rite Products Corp.. 43 TOROID COATED. Key specifications: material 43, tolerance -25%, +20%.
In Stock: 2,790
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Type | Toroid |
| Supplier Device Package | - |
| Material | 43 |
| Diameter | 0.530" (13.45mm) |
| Inductance Factor (Al) | 440 nH |
| Tolerance | -25%, +20% |
| Gap | Ungapped |
| Effective Permeability (µe) | - |
| Initial Permeability (µi) | 800 |
| Core Factor (ΣI/A) mm<sup>-1</sup> | 2.2904 |
| Effective Length (le) mm | 29.5 |
| Effective Area (Ae) mm² | 12.9 |
| Minimum Core Cross Section (Amin) mm² | - |
| Effective Magnetic Volume (Ve) mm³ | 381 |
| Finish | Plastic |
| Height | 0.213" (5.40mm) |
| Length | - |
| Width | - |
Frequently Asked Questions
5943000321 is a Ferrite Cores manufactured by Fair-Rite Products Corp.. 43 TOROID COATED
The material of 5943000321 is 43.
The tolerance of 5943000321 is -25%, +20%.
