5698181221

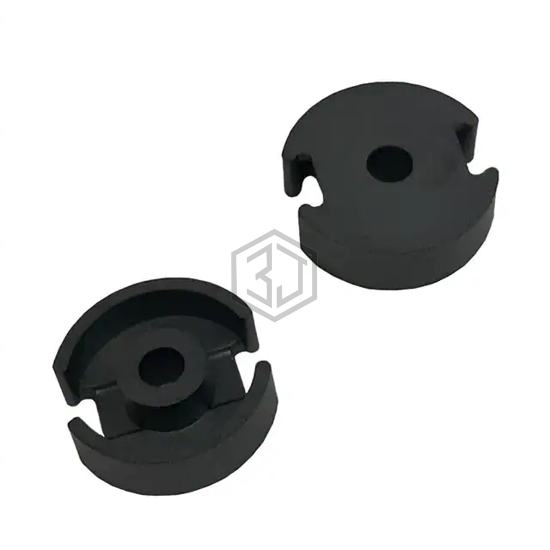

98 POT CORE SET
5698181221 is a Ferrite Cores manufactured by Fair-Rite Products Corp.. 98 POT CORE SET. Key specifications: tolerance ±25%.
In Stock: 677
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Type | PS |
| Supplier Device Package | - |
| Material | - |
| Diameter | 0.709" (18.00mm) |
| Inductance Factor (Al) | - |
| Tolerance | ±25% |
| Gap | Ungapped |
| Effective Permeability (µe) | - |
| Initial Permeability (µi) | 2400 |
| Core Factor (ΣI/A) mm<sup>-1</sup> | 60 |
| Effective Length (le) mm | 25.9 |
| Effective Area (Ae) mm² | 43 |
| Minimum Core Cross Section (Amin) mm² | - |
| Effective Magnetic Volume (Ve) mm³ | 1120 |
| Finish | Uncoated |
| Height | 0.211" (5.36mm) |
| Length | - |
| Width | - |
Frequently Asked Questions
5698181221 is a Ferrite Cores manufactured by Fair-Rite Products Corp.. 98 POT CORE SET
The tolerance of 5698181221 is ±25%.
