3J LIMITED
5695261721
95 POT CORE SET

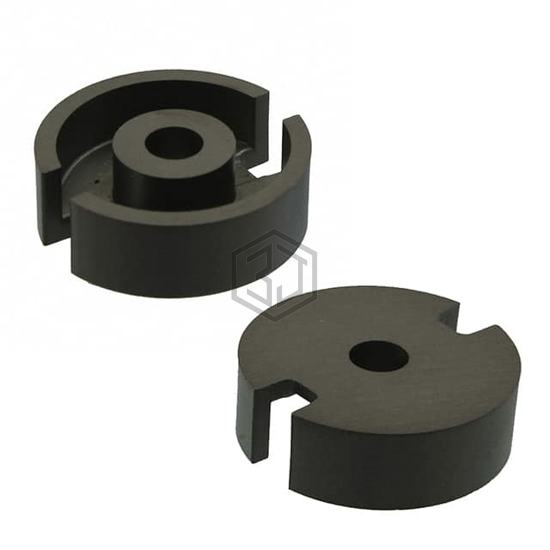

5695261721 is a Ferrite Cores manufactured by Fair-Rite Products Corp.. 95 POT CORE SET. Key specifications: material 95, tolerance ±25%.
In Stock: 123
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Type | P (Pot Core) |
| Supplier Device Package | - |
| Material | 95 |
| Diameter | 0.118" (3.00mm) |
| Inductance Factor (Al) | - |
| Tolerance | ±25% |
| Gap | Ungapped |
| Effective Permeability (µe) | - |
| Initial Permeability (µi) | 3000 |
| Core Factor (ΣI/A) mm<sup>-1</sup> | 44 |
| Effective Length (le) mm | 38 |
| Effective Area (Ae) mm² | 86.7 |
| Minimum Core Cross Section (Amin) mm² | 74 |
| Effective Magnetic Volume (Ve) mm³ | 3310 |
| Finish | Uncoated |
| Height | 0.317" (8.05mm) |
| Length | - |
| Width | - |
Frequently Asked Questions
5695261721 is a Ferrite Cores manufactured by Fair-Rite Products Corp.. 95 POT CORE SET
The material of 5695261721 is 95.
The tolerance of 5695261721 is ±25%.
