3J LIMITED
5678140921

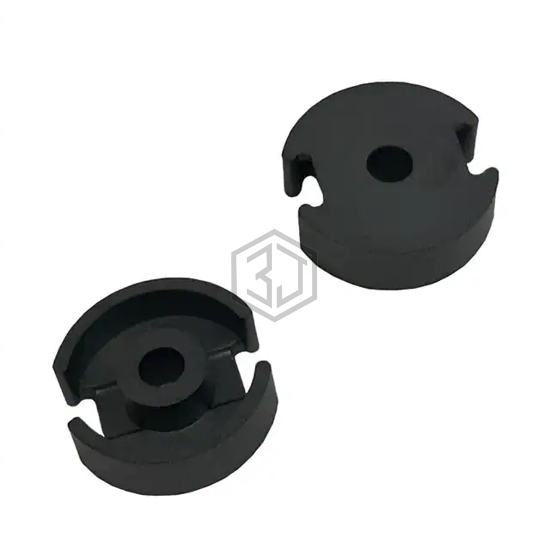

78 POT CORE SET
5678140921 is a Ferrite Cores manufactured by Fair-Rite Products Corp.. 78 POT CORE SET. Key specifications: material 78, tolerance ±25%.
In Stock: 2,042
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Type | PS |
| Supplier Device Package | - |
| Material | 78 |
| Diameter | 0.551" (14.00mm) |
| Inductance Factor (Al) | - |
| Tolerance | ±25% |
| Gap | Ungapped |
| Effective Permeability (µe) | - |
| Initial Permeability (µi) | 2300 |
| Core Factor (ΣI/A) mm<sup>-1</sup> | 79 |
| Effective Length (le) mm | 19.8 |
| Effective Area (Ae) mm² | 25.1 |
| Minimum Core Cross Section (Amin) mm² | - |
| Effective Magnetic Volume (Ve) mm³ | 495 |
| Finish | Uncoated |
| Height | 0.165" (4.20mm) |
| Length | - |
| Width | - |
Frequently Asked Questions
5678140921 is a Ferrite Cores manufactured by Fair-Rite Products Corp.. 78 POT CORE SET
The material of 5678140921 is 78.
The tolerance of 5678140921 is ±25%.
