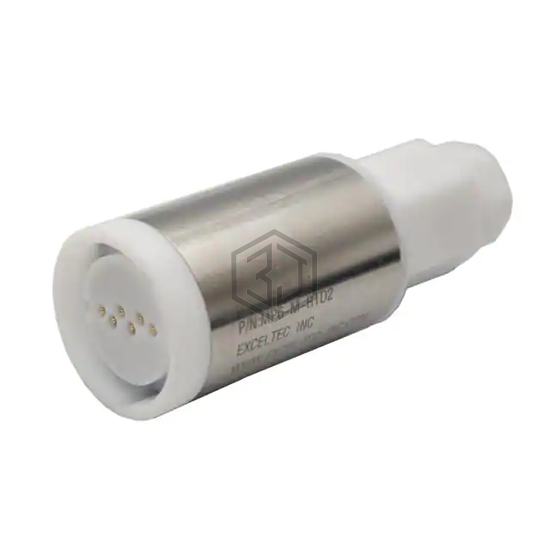

MAGNA-PLUG MALE V1
MP6-M-RTD2 is a Circular Connectors manufactured by Exceltec Inc.. MAGNA-PLUG MALE V1. Key specifications: mounting type Free Hanging (In-Line), operating temperature -40°C ~ 150°C, voltage rating 48VDC, color Silver, White.
In Stock: 240
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Plug, Male Pins |
| Number of Positions | 6 |
| Shell Size - Insert | 16 |
| Shell Size, MIL | - |
| Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - |
| Termination | Solder Cup |
| Fastening Type | Magnetic |
| Orientation | Keyed |
| Primary Material | Polytetrafluoroethylene (PTFE), Food-Grade |
| Shell Material | Stainless Steel |
| Shell Finish | Polished |
| Contact Finish - Mating | Gold |
| Color | Silver, White |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Features | Backshell, Cable Clamp, Coupling Nut, Spring Probe |
| Shielding | Unshielded |
| Current Rating (Amps) | 1.5A |
| Voltage Rating | 48VDC |
| Cable Opening | 0.256" (6.50mm) |
| Operating Temperature | -40°C ~ 150°C |
Submit your RFQ for MP6-M-RTD2 and get a quote within 24 hours.
