LED DRIVER CV AC/DC 48V 6.25A

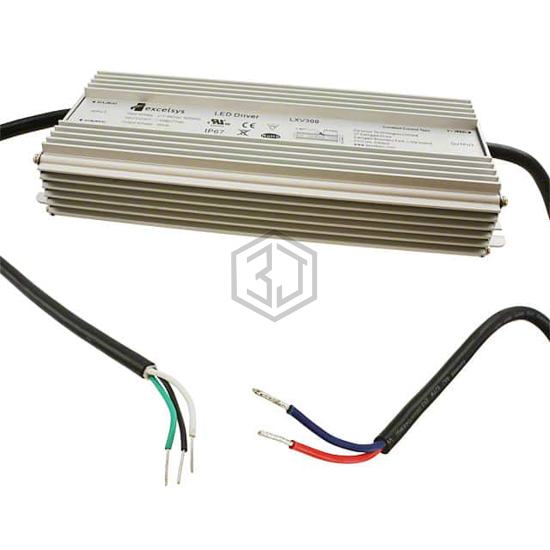

LXV300-048SH is a LED Drivers manufactured by Advanced Energy. LED DRIVER CV AC/DC 48V 6.25A. Key specifications: operating temperature -35°C ~ 70°C, voltage - output 48V, current - output (max) 6.25A, size / dimension 10.16" L x 3.69" W x 1.75" H (258.0mm x 93.6mm x 44.5mm).
In Stock: 7,567
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Constant Voltage |
| Topology | AC DC Converter |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 249VAC |
| Voltage - Input (Max) | 528VAC |
| Voltage - Output | 48V |
| Current - Output (Max) | 6.25A |
| Power (Watts) | 300 W |
| Voltage - Isolation | 3 kV |
| Dimming | - |
| Features | OCP, OTP, SCP |
| Ratings | IP67 |
| Operating Temperature | -35°C ~ 70°C |
| Efficiency | 91% |
| Termination Style | Wire Leads |
| Size / Dimension | 10.16" L x 3.69" W x 1.75" H (258.0mm x 93.6mm x 44.5mm) |
| Approval Agency | CE, cULus, EN |
| Standard Number | - |
Submit your RFQ for LXV300-048SH and get a quote within 24 hours.
