LED DRIVER CC AC/DC 107-214V

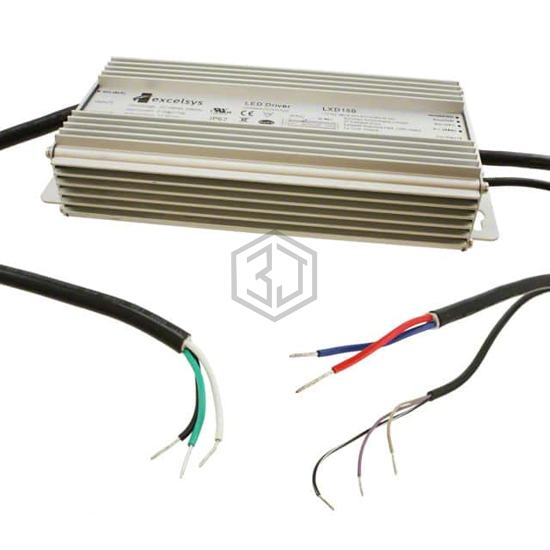

LXD150-0700SH is a LED Drivers manufactured by Advanced Energy. LED DRIVER CC AC/DC 107-214V. Key specifications: operating temperature -35°C ~ 65°C, voltage - output 107 ~ 214V, current - output (max) 700mA, size / dimension 8.74" L x 3.70" W x 1.71" H (222.0mm x 93.9mm x 43.5mm).
In Stock: 2
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Constant Current |
| Topology | AC DC Converter |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 249VAC |
| Voltage - Input (Max) | 528VAC |
| Voltage - Output | 107 ~ 214V |
| Current - Output (Max) | 700mA |
| Power (Watts) | 150 W |
| Voltage - Isolation | 3.75 kV |
| Dimming | Analog |
| Features | OTP, OVP, SCP |
| Ratings | IP67 |
| Operating Temperature | -35°C ~ 65°C |
| Efficiency | 91% |
| Termination Style | Wire Leads |
| Size / Dimension | 8.74" L x 3.70" W x 1.71" H (222.0mm x 93.9mm x 43.5mm) |
| Approval Agency | CE, CSA, cULus, EN |
| Standard Number | - |
