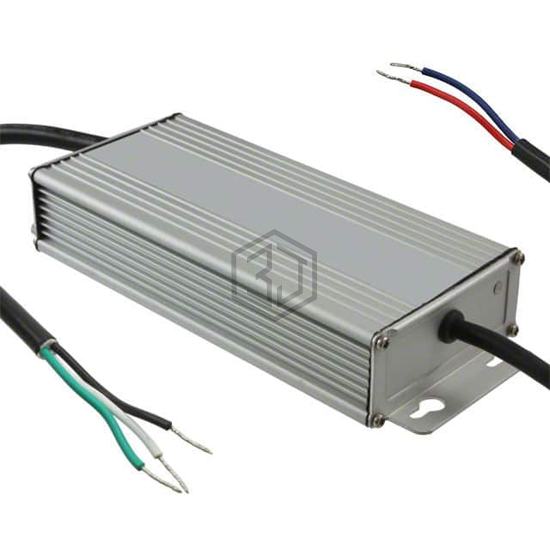

LED DRIVER CC AC/DC 107-214V
LXC75-0350SH is a LED Drivers manufactured by Advanced Energy. LED DRIVER CC AC/DC 107-214V. Key specifications: operating temperature -35°C ~ 70°C, voltage - output 107 ~ 214V, current - output (max) 350mA, size / dimension 8.74" L x 3.46" W x 1.54" H (222.0mm x 88.0mm x 39.0mm).
In Stock: 8
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Constant Current |
| Topology | AC DC Converter |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 249VAC |
| Voltage - Input (Max) | 528VAC |
| Voltage - Output | 107 ~ 214V |
| Current - Output (Max) | 350mA |
| Power (Watts) | 75 W |
| Voltage - Isolation | 3.75 kV |
| Dimming | - |
| Features | OTP, OVP, SCP |
| Ratings | IP67 |
| Operating Temperature | -35°C ~ 70°C |
| Efficiency | 87% |
| Termination Style | Wire Leads |
| Size / Dimension | 8.74" L x 3.46" W x 1.54" H (222.0mm x 88.0mm x 39.0mm) |
| Approval Agency | CE, cULus, EN |
| Standard Number | - |
Submit your RFQ for LXC75-0350SH and get a quote within 24 hours.
