LED DRIVER CC AC/DC 43-86V 700MA

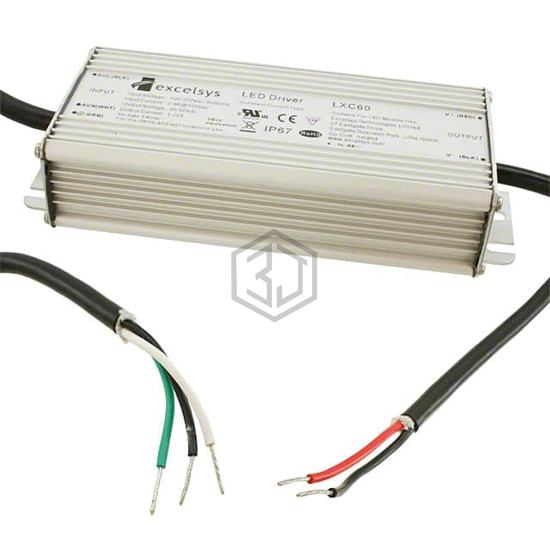

LXC60-0700SW is a LED Drivers manufactured by Advanced Energy. LED DRIVER CC AC/DC 43-86V 700MA. Key specifications: operating temperature -35°C ~ 70°C, voltage - output 43 ~ 86V, current - output (max) 700mA, size / dimension 6.97" L x 2.66" W x 1.46" H (177.0mm x 67.5mm x 37.0mm).
In Stock: 1
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Constant Current |
| Topology | AC DC Converter |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 90VAC |
| Voltage - Input (Max) | 305VAC |
| Voltage - Output | 43 ~ 86V |
| Current - Output (Max) | 700mA |
| Power (Watts) | 60 W |
| Voltage - Isolation | 3 kV |
| Dimming | - |
| Features | OVP, SCP |
| Ratings | IP67 |
| Operating Temperature | -35°C ~ 70°C |
| Efficiency | 91% |
| Termination Style | Wire Leads |
| Size / Dimension | 6.97" L x 2.66" W x 1.46" H (177.0mm x 67.5mm x 37.0mm) |
| Approval Agency | CE, cULus, EN |
| Standard Number | - |
Submit your RFQ for LXC60-0700SW and get a quote within 24 hours.
