ACDC CNV 12V 5V 24V 48V 2X24V 5V

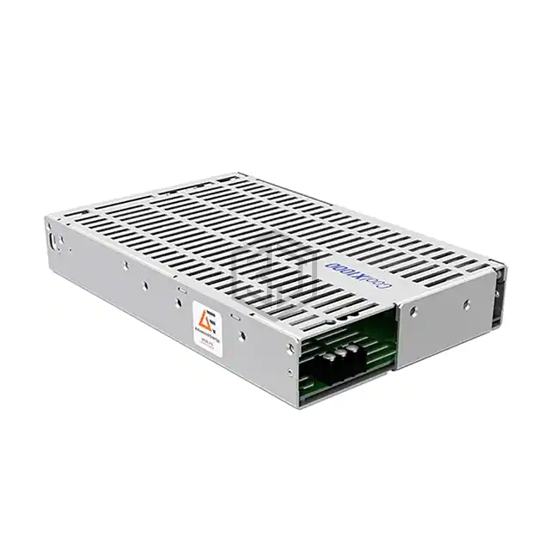

CX10S-GADH0B-P-A-DK00000 is a AC DC Converters manufactured by Advanced Energy. ACDC CNV 12V 5V 24V 48V 2X24V 5V. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - input 85 ~ 264 VAC, size / dimension 10.22" L x 6.46" W x 1.60" H (259.5mm x 164.0mm x 40.6mm).
In Stock: 6,429
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Enclosed |
| Number of Outputs | 7 |
| Voltage - Input | 85 ~ 264 VAC |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | 24V |
| Voltage - Output 3 | 5V |
| Voltage - Output 4 | 48V |
| Voltage - Output 5 | 5V |
| Voltage - Output 6 | 24V |
| Current - Output 1 | 3 A |
| Current - Output 2 | 3 A |
| Current - Output 3 | 21 A |
| Current - Output 4 | 4.17 A |
| Current - Output 5 | 6 A |
| Current - Output 6 | 3 A |
| Power (Watts) | 705W |
| Applications | ITE (Commercial), Medical |
| Voltage - Isolation | 4 kV |
| Efficiency | 93% |
| Operating Temperature | -40°C ~ 85°C |
| Features | Adjustable Output, PMBus™, Remote Sense, Standby Output, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 10.22" L x 6.46" W x 1.60" H (259.5mm x 164.0mm x 40.6mm) |
| Approval Agency | CSA, EN, IEC, UL |
| Standard Number | 60601-1; 60950-1; 62368-1 |
Submit your RFQ for CX10S-GADH0B-P-A-DK00000 and get a quote within 24 hours.
