AC/DC CONVERTER 48V 1000W

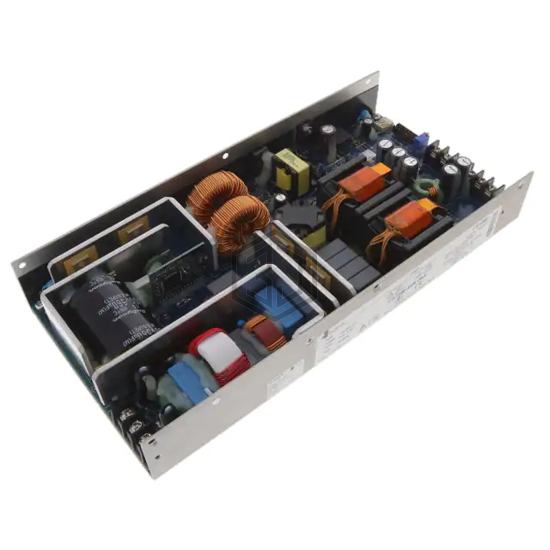

CS1000M-48N-04A is a AC DC Converters manufactured by Advanced Energy. AC/DC CONVERTER 48V 1000W. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C (With Derating), voltage - input 85 ~ 264 VAC, size / dimension 10.30" L x 5.00" W x 1.54" H (261.6mm x 127.0mm x 39.1mm).
In Stock: 20
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Enclosed |
| Number of Outputs | 1 |
| Voltage - Input | 85 ~ 264 VAC |
| Voltage - Output 1 | 48V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 20.8 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 1000W |
| Applications | ITE (Commercial), Medical |
| Voltage - Isolation | 4 kV |
| Efficiency | 95% |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Features | Adjustable Output, PFC, PMBus™, Remote Sense, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 10.30" L x 5.00" W x 1.54" H (261.6mm x 127.0mm x 39.1mm) |
| Approval Agency | CSA, EN, IEC, UL |
| Standard Number | 60601-1; 62368-1 |
