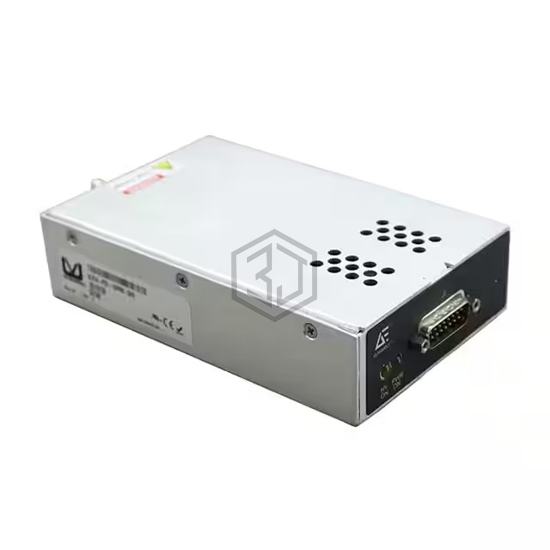

DC/DC CONVERTER 4000V 20W
4LE24-P20-10PPM-SHV is a DC DC Converters manufactured by Advanced Energy. DC/DC CONVERTER 4000V 20W. Key specifications: mounting type Chassis Mount, operating temperature 10°C ~ 45°C, current - output (max) 5mA, size / dimension 6.00" L x 3.81" W x 1.50" H (152.4mm x 96.8mm x 38.2mm).
In Stock: 3
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Enclosed |
| Voltage - Input (Min) | 23V |
| Voltage - Input (Max) | 30V |
| Number of Outputs | 1 |
| Voltage - Output 1 | 4000V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 5mA |
| Power (Watts) | 20W |
| Voltage - Isolation | - |
| Applications | ITE (Commercial) |
| Efficiency | - |
| Operating Temperature | 10°C ~ 45°C |
| Mounting Type | Chassis Mount |
| Size / Dimension | 6.00" L x 3.81" W x 1.50" H (152.4mm x 96.8mm x 38.2mm) |
| Approval Agency | CE, cURus |
| Standard Number | 60950-1 |
Submit your RFQ for 4LE24-P20-10PPM-SHV and get a quote within 24 hours.
