DC/DC CONVERTER 25000V 4W

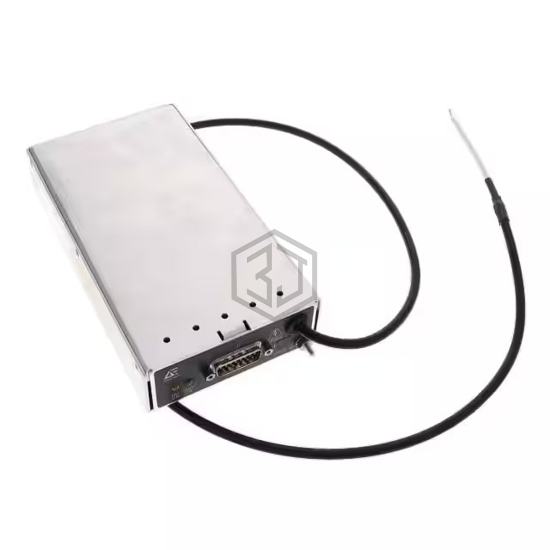

25LE24-P4 is a DC DC Converters manufactured by Advanced Energy. DC/DC CONVERTER 25000V 4W. Key specifications: mounting type Chassis Mount, operating temperature 10°C ~ 45°C, current - output (max) 160µA, size / dimension 7.28" L x 3.94" W x 1.50" H (184.9mm x 100.0mm x 38.1mm).
In Stock: 3
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Enclosed, High Voltage |
| Voltage - Input (Min) | 23V |
| Voltage - Input (Max) | 30V |
| Number of Outputs | 1 |
| Voltage - Output 1 | 25000V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 160µA |
| Power (Watts) | 4W |
| Voltage - Isolation | - |
| Applications | ITE (Commercial) |
| Efficiency | - |
| Operating Temperature | 10°C ~ 45°C |
| Mounting Type | Chassis Mount |
| Size / Dimension | 7.28" L x 3.94" W x 1.50" H (184.9mm x 100.0mm x 38.1mm) |
| Approval Agency | CE, cURus |
| Standard Number | 62368-1 |
