A-SERIES DC TO HVDC CONVERTER, S

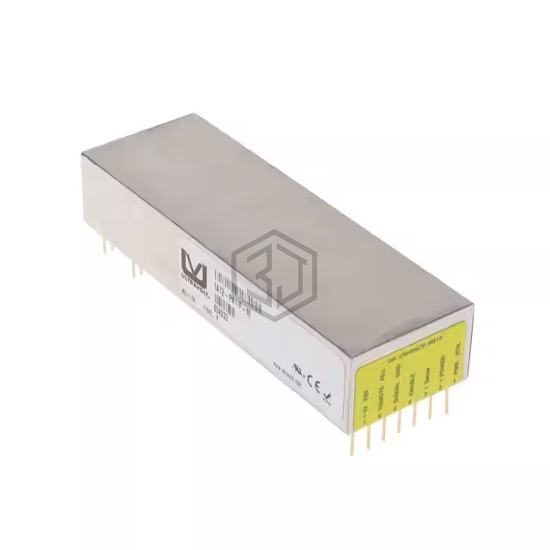

1A12-P4-F-M is a DC DC Converters manufactured by Advanced Energy. A-SERIES DC TO HVDC CONVERTER, S. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 65°C, package / case 11-DIP Module, current - output (max) 4mA.
In Stock: 50
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | High Voltage - Non-Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 11V |
| Voltage - Input (Max) | 16V |
| Voltage - Output 1 | 1000V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 4mA |
| Power (Watts) | 4 W |
| Voltage - Isolation | - |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 65°C |
| Efficiency | - |
| Mounting Type | Through Hole |
| Package / Case | 11-DIP Module |
| Size / Dimension | 3.70" L x 1.50" W x 0.77" H (94.0mm x 38.1mm x 19.6mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active High |
| Approval Agency | CE, cURus |
| Standard Number | 60950-1; 62368-1 |
Submit your RFQ for 1A12-P4-F-M and get a quote within 24 hours.
