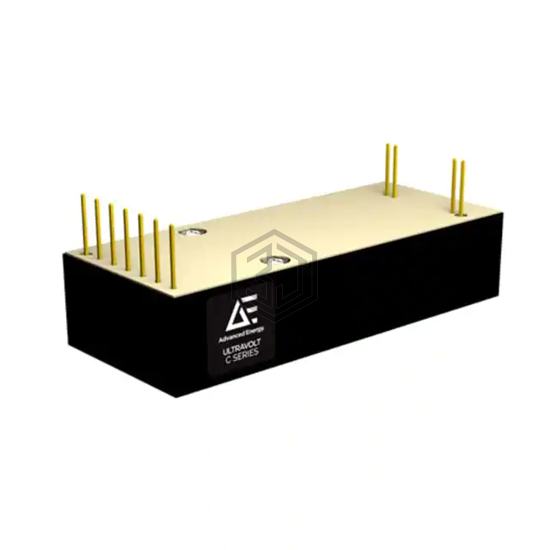

DC/DC CONVERTER 125V 20W
1/8C24-P20-C is a DC DC Converters manufactured by Advanced Energy. DC/DC CONVERTER 125V 20W. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 65°C, current - output (max) 160mA, size / dimension 4.75" L x 2.00" W x 1.00" H (120.7mm x 50.8mm x 25.4mm).
In Stock: 6
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Enclosed |
| Voltage - Input (Min) | 23V |
| Voltage - Input (Max) | 30V |
| Number of Outputs | 1 |
| Voltage - Output 1 | 125V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 160mA |
| Power (Watts) | 20W |
| Voltage - Isolation | - |
| Applications | ITE (Commercial) |
| Efficiency | - |
| Operating Temperature | -40°C ~ 65°C |
| Mounting Type | Chassis Mount |
| Size / Dimension | 4.75" L x 2.00" W x 1.00" H (120.7mm x 50.8mm x 25.4mm) |
| Approval Agency | CE, cURus |
| Standard Number | 60950-1; 62368-1 |
Submit your RFQ for 1/8C24-P20-C and get a quote within 24 hours.
