DC DC CONVERTER 1500V 500MW

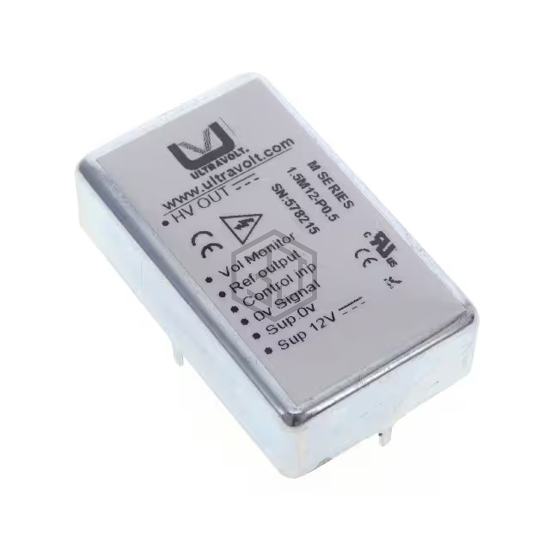

1.5M12-P0.5 is a DC DC Converters manufactured by Advanced Energy. DC DC CONVERTER 1500V 500MW. Key specifications: mounting type Through Hole, operating temperature -10°C ~ 65°C, package / case 9-SIP Module, 7 Leads, current - output (max) 330µA.
In Stock: 4
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | High Voltage - Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 11V |
| Voltage - Input (Max) | 13V |
| Voltage - Output 1 | 1500V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 330µA |
| Power (Watts) | 500 mW |
| Voltage - Isolation | - |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -10°C ~ 65°C |
| Efficiency | - |
| Mounting Type | Through Hole |
| Package / Case | 9-SIP Module, 7 Leads |
| Size / Dimension | 1.85" L x 1.10" W x 0.49" H (47.0mm x 28.0mm x 12.5mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | CE, cUL, cURus, UL |
| Standard Number | - |
Submit your RFQ for 1.5M12-P0.5 and get a quote within 24 hours.
