DC DC CONVERTER +/-500V 60W

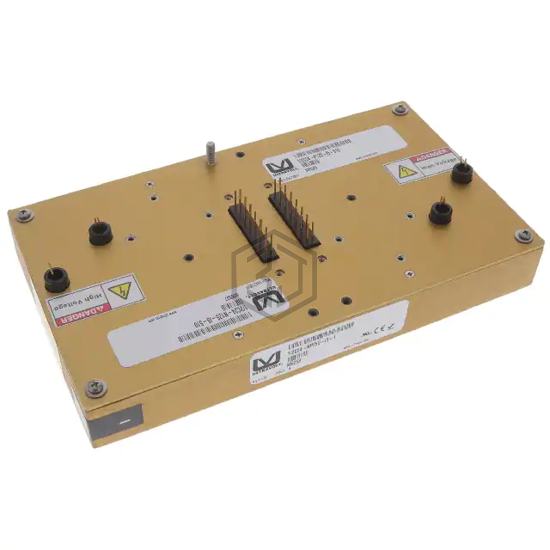

1/2C24-NP250-I5-1 is a DC DC Converters manufactured by Advanced Energy. DC DC CONVERTER +/-500V 60W. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 65°C, package / case Module, current - output (max) 250mA, 250mA.
In Stock: 34
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | High Voltage - Non-Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 23V |
| Voltage - Input (Max) | 30V |
| Voltage - Output 1 | 500V |
| Voltage - Output 2 | -500V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 250mA, 250mA |
| Power (Watts) | 60 W |
| Voltage - Isolation | - |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 65°C |
| Efficiency | - |
| Mounting Type | Through Hole |
| Package / Case | Module |
| Size / Dimension | 8.00" L x 4.50" W x 1.08" H (203.2mm x 114.3mm x 27.4mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active Floating |
| Approval Agency | CE, cURus |
| Standard Number | - |
Submit your RFQ for 1/2C24-NP250-I5-1 and get a quote within 24 hours.
