DC DC CONVERTER 500V 20W

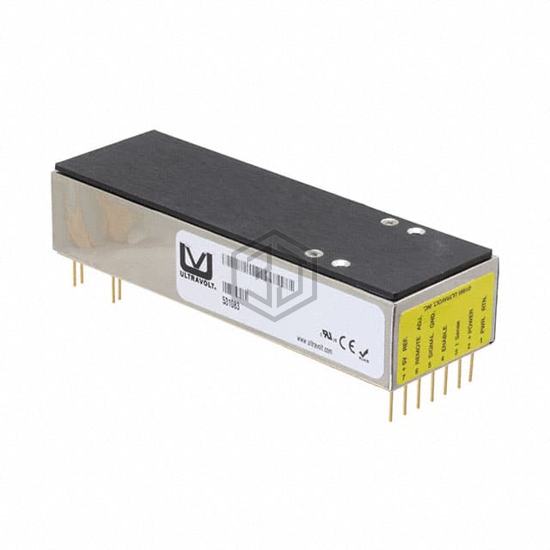

1/2A24-P20-F-M is a DC DC Converters manufactured by Advanced Energy. DC DC CONVERTER 500V 20W. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 65°C, package / case 11-DIP Module, current - output (max) 40mA.
In Stock: 4
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | High Voltage - Non-Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 23V |
| Voltage - Input (Max) | 30V |
| Voltage - Output 1 | 500V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 40mA |
| Power (Watts) | 20 W |
| Voltage - Isolation | - |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 65°C |
| Efficiency | - |
| Mounting Type | Through Hole |
| Package / Case | 11-DIP Module |
| Size / Dimension | 3.73" L x 1.53" W x 0.86" H (94.8mm x 38.9mm x 21.9mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | CE, cURus |
| Standard Number | 60950-1; 62368-1 |
Submit your RFQ for 1/2A24-P20-F-M and get a quote within 24 hours.
