0009-191-000-41

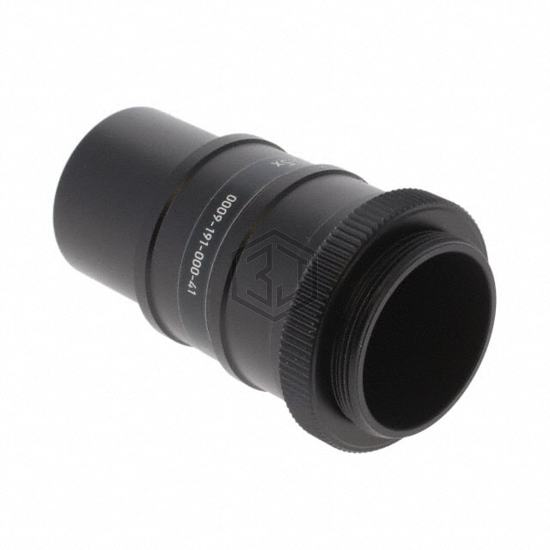

MACRO-CCD-LENS 0.5X F/8.0
0009-191-000-41 is a Machine Vision - Lenses manufactured by Excelitas Technologies. MACRO-CCD-LENS 0.5X F/8.0. Key specifications: mounting type C-Mount, resolution 5µm.
In Stock: 2
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Macro |
| Focal Length | 35.0mm |
| Magnification | 0.5x |
| Focal Ratio | F8 |
| Compatible Sensor Size (Max) | 1" |
| Field of View | 11.0mm |
| Working Distance | 90mm |
| Depth Of Field | - |
| Resolution | 5µm |
| TV Distortion | - |
| Filter Size | M22.5 x P0.5 |
| Diameter | 32.0mm Dia |
| Length | 54.5mm |
| Mounting Type | C-Mount |
| Operating Temperature | - |
Frequently Asked Questions
0009-191-000-41 is a Machine Vision - Lenses manufactured by Excelitas Technologies. MACRO-CCD-LENS 0.5X F/8.0
The mounting type of 0009-191-000-41 is C-Mount.
The resolution of 0009-191-000-41 is 5µm.
