SWI NO MOM 24V 0.2A 22MM PIEZO A

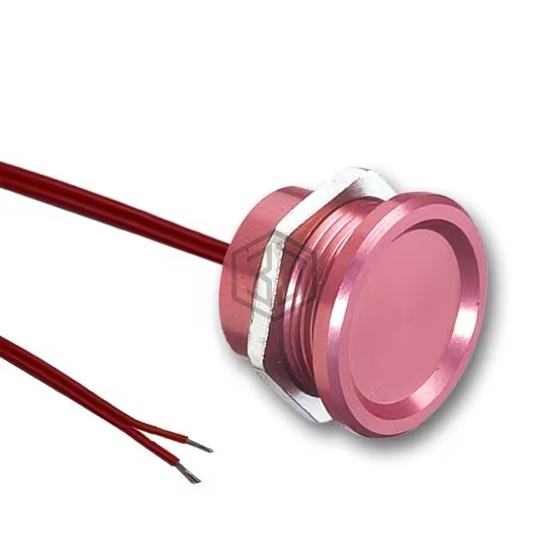

SMA2AAW1R is a Pushbutton Switches manufactured by Everswitch. SWI NO MOM 24V 0.2A 22MM PIEZO A. Key specifications: mounting type Panel Mount, Front, operating temperature -40°C ~ 125°C, voltage rating - dc 24 V, current rating (amps) 200mA (AC/DC).
In Stock: 630
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Panel Mount, Front |
| Type | Piezo, Anti-Vandal |
| Circuit | SPST-NO |
| Switch Function | Off-Mom |
| Current Rating (Amps) | 200mA (AC/DC) |
| Voltage Rating - AC | 24 V |
| Voltage Rating - DC | 24 V |
| Actuator Type | Round, Button, Flush |
| Actuator Marking | No Marking |
| Color - Actuator/Cap | Red |
| Illumination Type, Color | - |
| Illumination Voltage (Nominal) | - |
| Termination Style | Wire Leads |
| Ingress Protection | IP68/IP69K - Dust Tight, Water Resistant, Waterproof |
| Features | Epoxy Sealed Terminals |
| Panel Cutout Dimensions | Circular - 22.50mm Dia |
| Operating Temperature | -40°C ~ 125°C |
Submit your RFQ for SMA2AAW1R and get a quote within 24 hours.
