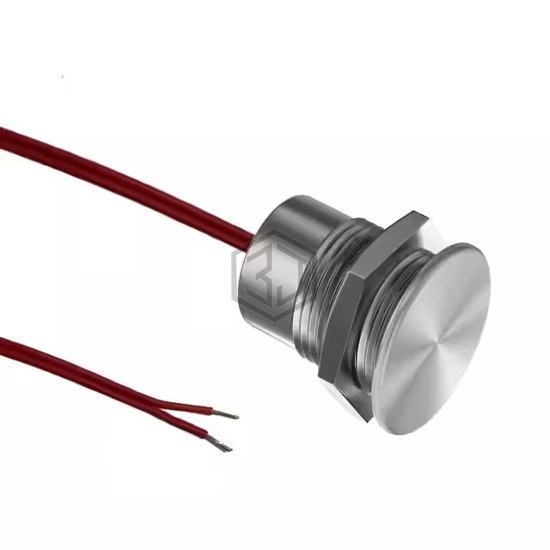

SWI NO 6SEC 24V 0.2A 16MM PIEZO
CSMF6CAW2N is a Pushbutton Switches manufactured by Everswitch. SWI NO 6SEC 24V 0.2A 16MM PIEZO. Key specifications: mounting type Panel Mount, Front, operating temperature 0°C ~ 75°C, voltage rating - dc 24 V, current rating (amps) 200mA (AC/DC).
In Stock: 16
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Panel Mount, Front |
| Type | Piezo, Anti-Vandal |
| Circuit | SPST-NO |
| Switch Function | Off-Mom |
| Current Rating (Amps) | 200mA (AC/DC) |
| Voltage Rating - AC | 24 V |
| Voltage Rating - DC | 24 V |
| Actuator Type | Round, Button, Flush |
| Actuator Marking | No Marking |
| Color - Actuator/Cap | Silver |
| Illumination Type, Color | - |
| Illumination Voltage (Nominal) | - |
| Termination Style | Wire Leads |
| Ingress Protection | IP68/IP69K - Dust Tight, Water Resistant, Waterproof |
| Features | Epoxy Sealed Terminals |
| Panel Cutout Dimensions | Circular - 16.20mm Dia |
| Operating Temperature | 0°C ~ 75°C |
