OPTOISO 5KV OPEN COLLECTOR 6DIP

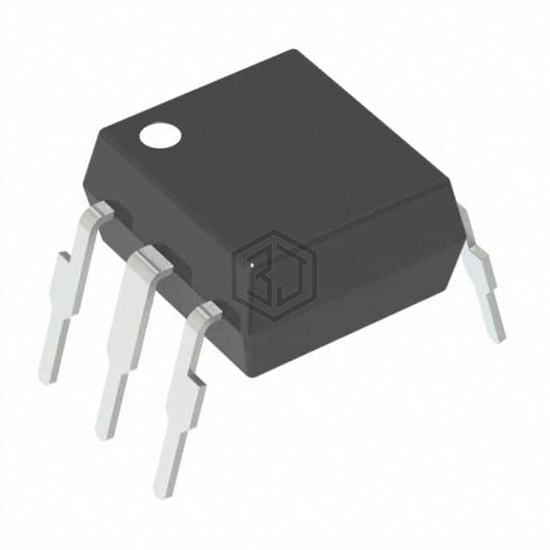

H11L1M is a Optoisolators - Logic Output manufactured by Everlight Electronics Co Ltd. OPTOISO 5KV OPEN COLLECTOR 6DIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 100°C, voltage - supply 3V ~ 16V, package / case 6-DIP (0.400", 10.16mm).
In Stock: 20
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Channels | 1 |
| Inputs - Side 1/Side 2 | 1/0 |
| Voltage - Isolation | 5000Vrms |
| Common Mode Transient Immunity (Min) | - |
| Input Type | DC |
| Output Type | Open Collector |
| Current - Output / Channel | 50 mA |
| Data Rate | 1MHz |
| Propagation Delay tpLH / tpHL (Max) | 4µs, 4µs |
| Rise / Fall Time (Typ) | 100ns, 100ns |
| Voltage - Forward (Vf) (Typ) | 1.15V |
| Current - DC Forward (If) (Max) | 60mA |
| Voltage - Supply | 3V ~ 16V |
| Operating Temperature | -55°C ~ 100°C |
| Mounting Type | Through Hole |
| Package / Case | 6-DIP (0.400", 10.16mm) |
| Supplier Device Package | 6-DIP |
Submit your RFQ for H11L1M and get a quote within 24 hours.
