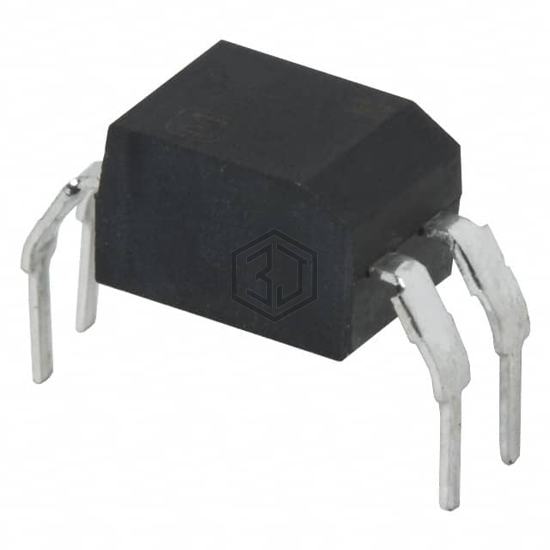

OPTOISOLTR 5KV TRANSISTOR 4-DIP
EL816(M)(C) is a Optoisolators - Transistor, Photovoltaic Output manufactured by Everlight Electronics Co Ltd. OPTOISOLTR 5KV TRANSISTOR 4-DIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 110°C, voltage - forward (vf) (typ) 1.2V, package / case 4-DIP (0.400", 10.16mm).
In Stock: 5,981
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Channels | 1 |
| Voltage - Isolation | 5000Vrms |
| Current Transfer Ratio (Min) | 200% @ 5mA |
| Current Transfer Ratio (Max) | 400% @ 5mA |
| Turn On / Turn Off Time (Typ) | - |
| Rise / Fall Time (Typ) | 4µs, 3µs |
| Input Type | DC |
| Output Type | Transistor |
| Voltage - Output (Max) | 80V |
| Current - Output / Channel | 50mA |
| Voltage - Forward (Vf) (Typ) | 1.2V |
| Current - DC Forward (If) (Max) | 60 mA |
| Vce Saturation (Max) | 200mV |
| Operating Temperature | -55°C ~ 110°C |
| Mounting Type | Through Hole |
| Package / Case | 4-DIP (0.400", 10.16mm) |
| Supplier Device Package | 4-DIP |
Submit your RFQ for EL816(M)(C) and get a quote within 24 hours.
